AT5556

Features: • Independent 6-Channel H-Bridge• Built-in 4 constant voltage drivers, two of those drivers with brake function.• Built-in 2 constant current drivers.• Low on-resistance <1.2 Ω (typ.)• Built-in charge pump(to drive the upside NMOS of H-bridge driver...

product image

AT5556 Picture
See larger image
SeekIC No. : 004290486 Detail

AT5556: Features: • Independent 6-Channel H-Bridge• Built-in 4 constant voltage drivers, two of those drivers with brake function.• Built-in 2 constant current drivers.• Low on-resis...

AT5556 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT5556
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Independent 6-Channel H-Bridge
• Built-in 4 constant voltage drivers, two of those drivers with brake function.
• Built-in 2 constant current drivers.
• Low on-resistance <1.2 Ω (typ.)
• Built-in charge pump(to drive the upside NMOS of H-bridge drivers)
• Low Voltage operation
• Built-in Thermal Shutdown Function
• LQFP-48 Package


Application

•DSC motor Driver


Pinout

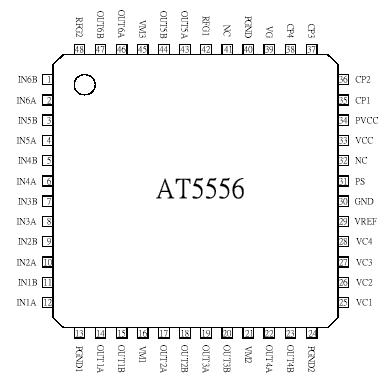

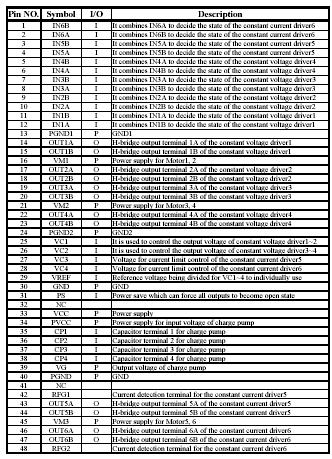

Connection Diagram Connection Diagram


Specifications

Item
Symbol
Ratings
Units
Supply voltage VCC
VCC
-0.5 ~ +5.5
V
Supply voltage VM
VM
-0.5 ~ +5.5
V
Supply voltage PVCC
PVCC
-0.5 ~ +5.5
V
Charge pump voltage
VG
12
V
Control input voltage
VIN
-0.5 ~ VCC
V
Power dissipation
Pd
1000
mW
Operating temperature
Topr
-20 ~ +85
°C
Junction temperature
Tj
~ +150
°C
Storage temperature range
Tstg
-55 ~ +150
°C
Maximum output current
Iout
800
mA



Description

The AT5556 is a 6-channel H-bridge drivers IC for DSC motor application. It built in with 4 constant voltage drive and 2 constant current blocks to drive auto-focus, zoom, shutter, auto-exposure motors.
