AT43101

Features:

· Supports PCMCIA PC Card Standard - Release 2.1
· Directly connects to PCMCIA Connector
· No Additional Circuits Required
· 256 x 8 Internal Parallel E²PROM for CIS
           Endurance: 10,000 Write Cycles
           Data Retention: 10 Years
           Internally Controlled Write Algorithm
· Operates over V_CC = 4.5 to 5.5 Volts
· 64 Pin TQFP, Max. Height = 1.2 mm Mounted
· Usage is Two Devices Per Card
· Dual Mode Device with Mode Select Pin
· Supports Up to 64 Mbytes of:
        Flash       E²PROM      SRAM
        ROM         OTP

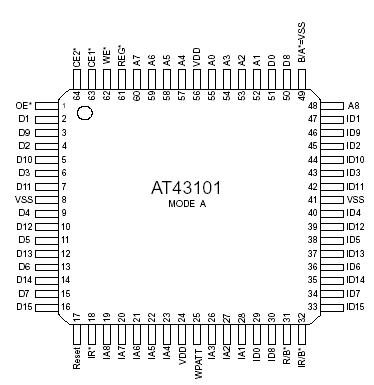

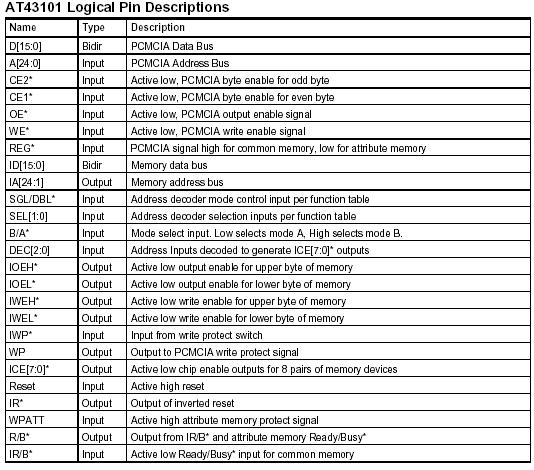

Pinout




Specifications

Operating Temperature ....................0°C to +70°C Storage Temperature....................-65°C to +150°C Voltage on Any Pin) With Respect to VSS.....................-0.6 V to Vcc +0.6 V Maximum Operating Voltage ............................. 6.1 V

Description

The AT43101 is a low power, high integration PCMCIA interface chip set for memory cards. It provides a complete PCMCIA PC Card Standard Release 2.1 compliant interface with no other support devices. Two AT43101's are used on each memory card. A mode select pin configures the device for operation as a low order address and data buffer when low and as the high order address buffer/decoder when high. The two devices together form a com-plete address and data buffer, address decoder, memory device selection logic, read and write control logic and a Card Information Structure (CIS). Eight chip enable outputs are provided, supporting 16 memory devices. AT43101 is pinned out for direct connection to the PCMCIA connector without PC trace cross-overs. Its 1.0 mm thick body allows population of both sides of a Type 1 PCMCIA card.
