AT34C02

Features:

• Permanent Software Write Protection for the First-Half of the Array
   Software Procedure to Verify Write Protect Status
• Hardware Write Protection for the Entire Array
• Low Voltage and Standard Voltage Operation
   5.0 (V_CC = 4.5V to 5.5V)
   2.7 (V_CC = 2.7V to 5.5V)
   1.8 (V_CC = 1.8V to 5.5V)
• Internally Organized 256 x 8
• 2-Wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 100 KHz (1.8V and 2.7V) and 400 KHz (5.0V) Compatibility
• 16-Byte Page Write Modes
• Partial Page Writes Are Allowed
• Self-Timed Write Cycle (10 ms max)
• High Reliability
   Endurance: 1 Million Write Cycles
   Data Retention: 100 Years
   ESD Protection: >3,000V
• Automotive Grade and Extended Temperature Devices Available
• 8-Pin PDIP, 8-Pin JEDEC SOIC and 8-Pin TSSOP Packages

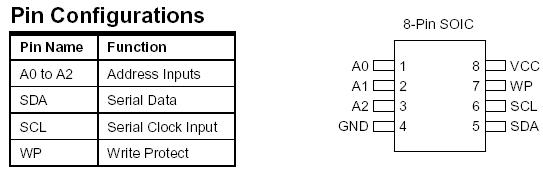

Pinout




Specifications

Operating Temperature...................... -55°C to +125°C Storage Temperature ........................ -65°C to +150°C Voltage on Any Pin with Respect to Ground ............................-1.0V to +7.0V Maximum Operating Voltage................................... 6.25V DC Output Current................................................ 5.0 mA

Description

The AT34C02 provides 2048 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 256 words of 8 bits each. The first-half of the device incorporates a software write protection feature while hardware write protection for the entire array is available via an external pin as well. Once the software write protection is enabled, by sending a special command to the device, it cannot be reversed. The hardware write protection is controlled with the WP pin and can be used to protect the entire array, whether or not the software write protection has been enabled. AT34C02allows the user to protect none, first-half, or all of the array depending on the application. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential. The AT34C02 is available in space saving 8-pin PDIP, 8-pin JEDEC SOIC, and 8-pin TSSOP packages and is accessed via a 2-wire serial interface. In addition, AT34C02 is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), and 1.8V (1.8V to 5.5V) versions.
