AT27LV020A

Features: • Dual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6V or Standard 5V ± 10% Supply Range• Compatible with JEDEC Standard AT27C020• Low Power CMOS Operation 20 mA max. (less than 1 mA typical) Standby for VCC = 3.6V 29 mW max. Active at 5 MHz for VCC...

product image

AT27LV020A Picture
See larger image
SeekIC No. : 004289824 Detail

AT27LV020A: Features: • Dual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6V or Standard 5V ± 10% Supply Range• Compatible with JEDEC Standard AT27C020• Low Power CMOS Ope...

AT27LV020A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT27LV020A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6V or Standard 5V ± 10% Supply Range
• Compatible with JEDEC Standard AT27C020
• Low Power CMOS Operation 20 mA max. (less than 1 mA typical) Standby for VCC = 3.6V 29 mW max. Active at 5 MHz for VCC = 3.6V
• JEDEC Standard Packages 32-Lead PLCC 32-Lead TSOP (8 X 20 mm) 32-Lead VSOP (8 x 14 mm)
• High Reliability CMOS Technology 2,000V ESD Protection 200 mA Latchup Immunity
• Rapid™Programming Algorithm - 100 ms/byte (typical)
• Two-Line Control
• CMOS and TTL Compatible Inputs and Outputs JEDEC Standard for LVTTL
• Integrated Product Identification Code
• Commercial and Industrial Temperature Ranges 2 Megabit (256K x 8) Low Voltage OTP EPROM

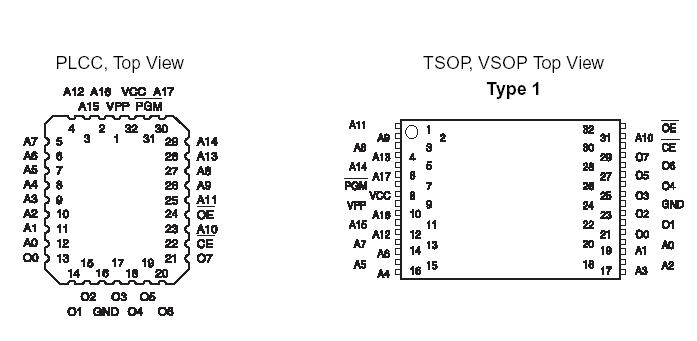

Pinout

Connection Diagram


Specifications

Temperature Under Bias .................................. -40°C to +85°C
Storage Temperature .................................... -65°C to +125°C
  Voltage on Any Pin with
Respect to Ground......................................... -2.0V to +7.0V (1)
  Voltage on A9 with
Respect to Ground ...................................... -2.0V to +14.0V (1)
  VPP Supply Voltage with
Respect to Ground........................................-2.0V to +14.0V (1)


Description

  The AT27LV020A is a high performance, low power, low voltage 2,097,152 bit onetime programmable read only memory (OTP EPROM) organized as 256K by 8 bits. It requires only one supply in the range of 3.0 to 3.6V in normal read mode operation, making it ideal for fast, portable systems using battery power.
