AT24CS128

Features: • One-Time Programmable (OTP) Feature• Low-Voltage and Standard-Voltage Operation 5.0 (VCC = 4.5V to 5.5V) 2.7 (VCC = 2.7V to 5.5V) 1.8 (VCC = 1.8V to 3.6V)• Internally Organized 16,384 x 8 and 32,768 x 8• 2-Wire Serial Interface• Schmitt Trigger, Filtered I...

product image

AT24CS128 Picture
See larger image
SeekIC No. : 004289596 Detail

AT24CS128: Features: • One-Time Programmable (OTP) Feature• Low-Voltage and Standard-Voltage Operation 5.0 (VCC = 4.5V to 5.5V) 2.7 (VCC = 2.7V to 5.5V) 1.8 (VCC = 1.8V to 3.6V)• Internally O...

AT24CS128 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AT24CS128
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• One-Time Programmable (OTP) Feature
• Low-Voltage and Standard-Voltage Operation
5.0 (VCC = 4.5V to 5.5V)
2.7 (VCC = 2.7V to 5.5V)
1.8 (VCC = 1.8V to 3.6V)
• Internally Organized 16,384 x 8 and 32,768 x 8
• 2-Wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 1 MHz (5V), 400 kHz (2.7V) and 100 kHz (1.8V) Compatibility
• Write Protect Pin for Hardware and Software Data Protection
• 64-Byte Page Write Mode (Partial Page Writes Allowed)
• Self-Timed Write Cycle (5 ms typical)
• High Reliability
Endurance: 100,000 Write Cycles
Data Retention: 40 Years
ESD Protection: >4000V
• Automotive Grade and Extended Temperature Devices Available
• 8-Pin JEDEC PDIP and 8-Pin JEDEC and EIAJ SOIC Packages

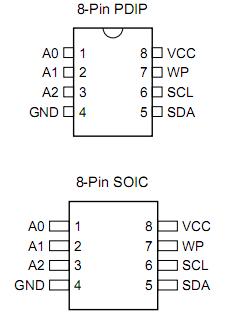

Pinout

Connection Diagram


Specifications

Operating Temperature.................................. -55°C to +125°C
Storage Temperature ..................................... -65°C to +150°C
Voltage on Any Pin
with Respect to Ground .....................................-1.0V to +7.0V
Maximum Operating Voltage........................................... 6.25V
DC Output Current........................................................ 5.0 mA


Description

      The AT24CS128/256 provides 131,072/262,144 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8bits each. The device's cascadable feature allows up to 4 devices to share a common 2-wire bus. The device also features a one-time programmable 2048 bit array, which once enabled, becomes read-only and cannot be overwritten. If not enabled, the OTP section will function as part of the normal memory array. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The devices are available in space-saving 8-pin JEDEC PDI (AT24CS128/256), 8-pin EIAJ (AT24CS128/256), 8-pin JEDEC SOIC (AT24CS128) packages. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.
