AT24C08A

Features:

• Write Protect Pin for Hardware Data Protection
   Utilizes Different Array Protection Compared to the AT24C02/04/08
• Low Voltage and Standard Voltage Operation
   5.0 (V_CC = 4.5V to 5.5V)
   2.7 (V_CC = 2.7V to 5.5V)
   2.5 (V_CC = 2.5V to 5.5V)
   1.8 (V_CC = 1.8V to 5.5V)
• Internally Organized 256 x 8 (2K), 512 x 8 (4K) or 1024 x 8 (8K)
• 2-Wire Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Supperssion
• Bidirectional Data Transfer Protocol
• 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility
• 8-Byte Page (2K), 16-Byte Page (4K, 8K) Write Modes
• Partial Page Writes Are Allowed
• Self-Timed Write Cycle (10 ms max)
• High Reliability
  Endurance: 1 Million Write Cycles
  Data Retention: 100 Years
  ESD Protection: >3000V
• Automotive Grade and Extended Temperature Devices Available
• 8-Pin and 14-Pin JEDEC SOIC, 8-Pin PDIP, and 8-Pin TSSOP Packages

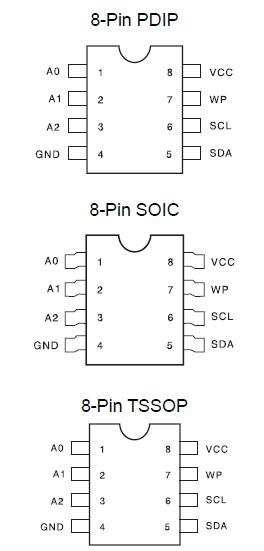

Pinout




Specifications

Operating Temperature.................................. -55 to +125
Storage Temperature .....................................-65 to +150
Voltage on Any Pin
with Respect to Ground .....................................1.0V to +7.0V
Maximum Operating Voltage........................................... 6.25V
DC Output Current........................................................ 5.0 mA


Description

The AT24C02A/04A/08A provides 2048/4096/8192 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 256/512/1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C02A/04A/08A is available in space saving 8-pin PDIP, 8-pin, 14-pin SOIC, and 8-pin TSSOP packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
