Product Details

Description



Features:

Low-voltage and Standard-voltage Operation
   2.7 (VCC = 2.7V to 5.5V)
   1.8 (VCC = 1.8V to 5.5V)
Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K),
    1024 x 8 (8K) or 2048 x 8 (16K)
Two-wire Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility
Write Protect Pin for Ha
rdware Data Protection
8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
Partial Page Writes Allowed
Self-timed Write Cycle (5 ms max)
High-reliability
   Endurance: 1 Million Write Cycles
   Data Retention: 100 Years
Automotive Grade and Lead-free/Ha
logen-free Devices Available
8-lead PDIP, 8-lead JEDEC SOIC, 8-lead MAP, 5-lead SOT23,
    8-lead TSSOP and 8-ball dBGA2 Packages
Die Sales: Wafer Form, Waffle Pack and Bumped Wafers

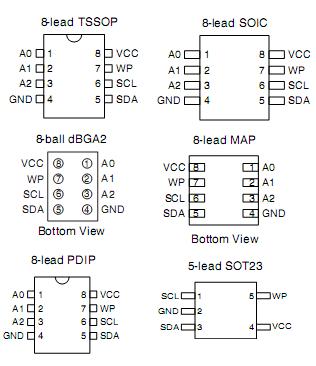

Pinout

Connection Diagram


Specifications

Operating Temperature..................................55°C to +125°C

Storage Temperature.....................................65°C to +150°C

Voltage on Any Pin
with Respect to Ground........................................1.0V to +7.0V

Maximum Operating Voltage................................................6.25V

DC Output Current..............................................................5.0 mA


Description

The AT24C01A/02/04/08A/16A provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable  read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C01A/02/04/08A/16A is available in space-saving 8-lead PDIP,  8 lead JEDEC SOIC, 8-lead MAP, 5-lead SOT23 (AT24C01A/AT24C02/AT24C04), 8- lead TSSOP, and 8-ball dBGA2 packages and is accessed via a Two-wire serial inter- face. In addition, the entire family is available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 5.5V) versions.
