Features:

• Low Voltage Programmable Logic Device
Wide Power Supply Range - 3.0V to 5.5V
Ideal for Battery Powered Systems
• High Speed Operation
20 ns max Propagation Delay at VCC = 3.0V
• Commercial and Industrial Temperature Ranges
• Familiar 22V10 Logic Architecture
• Low Power 3-Volt CMOS Operation
  AT22LV10L AT22LV10
Temp Com./Ind. Com./Ind.
ICC (mA) 4 / 5 35 / 45
VCC = 3.6V
• CMOS and TTL Compatible Inputs and Outputs
10 mA Leakage Maximum
• Reprogrammable - Tested 100% for Programmability
• High Reliability CMOS Technology
2000V ESD Protection
200 mA Latchup Immunity
• Dual-In-Line and Surface Mount Packages




Pinout

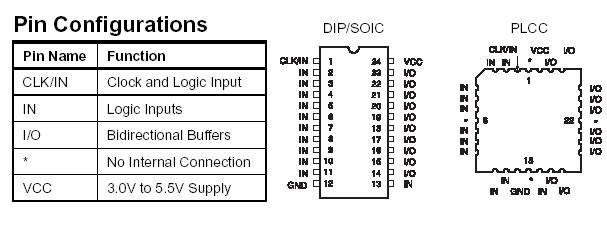

  Connection Diagram


Specifications

Temperature Under Bias .................................. -55°C to +125°C

Storage Temperature ....................................... -65°C to +150°C

Voltage on Any Pin with
Respect to Ground.............................................. -2.0V to +7.0V (1)

Voltage on Input Pins
with Respect to Ground
During Programming.......................................... -2.0V to +14.0V (1)

Programming Voltage with
Respect to Ground............................................. -2.0V to +14.0V (1)

Integrated UV Erase Dose .................................... 7258 W•sec/cm2



Description

The AT22LV10 and AT22LV10L are low voltage compatible CMOS high performance Programmable Logic Devices (PL Ds). Speeds down to 20 ns and power dissipation as low as 14.4 mW are offered. All speed ranges are specified over the 3.0V to 5.5V range. All pins offer a low ±10 mA leakage.

The AT22LV10L provides the optimum low power CMOS PLD solution, with low DC power (1 mA typical at VCC =3.3 V) and full CMOS output levels. That  significantly reduces total system power, allowing battery powered operation.

Full CMOS output levels help reduce power in many other system components.

It and AT22LV10L logic architectures are identical to the familiar 22V10. Each output is allocated from eight to 16 product terms, which allows highly complex logic functions to be realized.

Two additional product terms are included to provide synchronous preset and asynchronous reset. These terms of AT22LV10 are common to all ten registers. All registers are automatically cleared upon power up.

Register AT22LV10 preload simplifies testing. A security fuse prevents unauthorized copying of programmed fuse patterns.
