Product Details

Description



Features:

• ±2% Output Accuracy
• 12A Quiescent Current
• Shutdown Current <1A
• High Output Voltage: Up to 28V
• 30mA Output Current
• Tiny SOT-25 Package


Application

• Microcontroller Power
• Notebook Computers
• Battery Operating system


Pinout

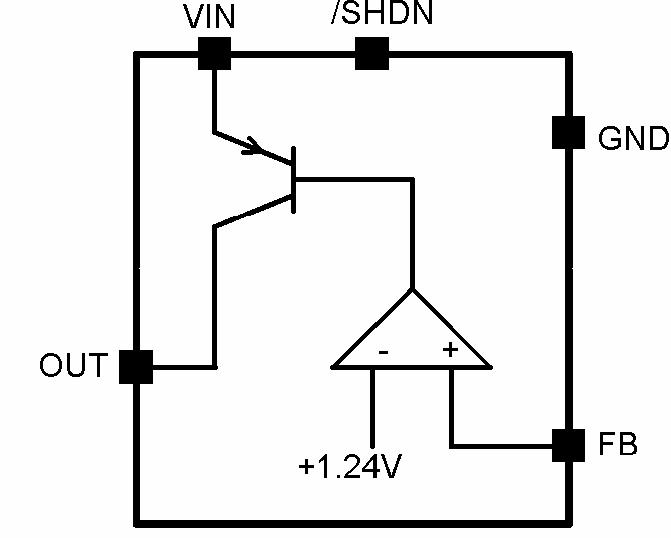

Connection Diagram


Specifications

Item Symbol Ratings Units
Storage temperature TSTG -55〜+150
Operating tempera TOPR -30〜+85
VIN   -0.3〜+30 V
/SHDN,FB   -0.3〜+(VIN+0.3) V
OUT   -0.3V〜+30 V
Power consumptio Pd*1 570 mW
*1. Continuous Power Dissipation derate 7.1mW/ above +70


Description

The AT1202 is high voltage, micropower linear regulator. Key feature include wide input voltage, low-noise, low-dropout and low-quiescent-current. The output voltage precision is within ±2and output currents of up to 30mA.
