AT-42086-BLKG, US $ .86-1.44 , Avago Technologies, AT-42086-BLKG DataSheet download, circuit diagram from SeekIC.com

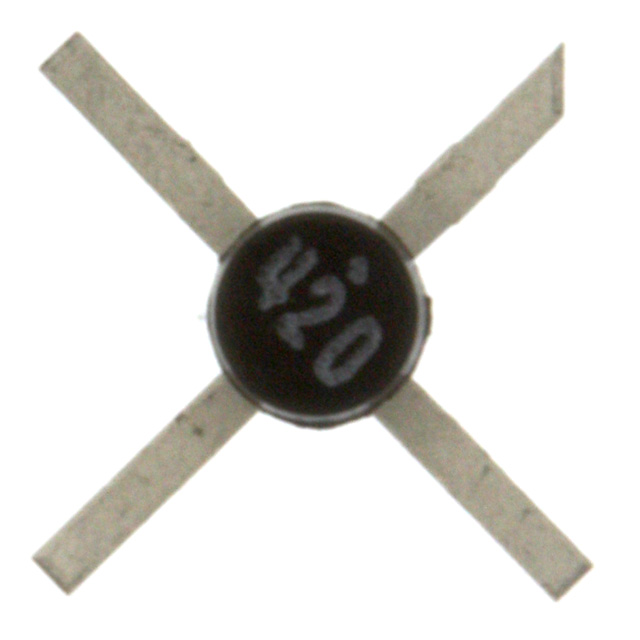

See larger image

SeekIC No. : 00205013 Detail

AT-42086-BLKG: Transistors Bipolar (BJT) Transistor Si

AT-42086-BLKG Data Sheet

US $ .86~1.44 / Piece | Get Latest Price

Part Number:: AT-42086-BLKG
Mfg:: Avago Technologies
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$1.44
$1.2
$.96
$.86

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AT-4.000MAGE-T evaluate
US $.24 - .33 / Piece

Crystals 4.00MHz 30ppm 12pF -40 to 85C
AT-40 evaluate
Speakers & Transducers TRANSDUCER
AT-400 evaluate
Features: 1.Connector Coupling Portion Variations Coupling Portion HRS Series Name ...

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	12 V
Emitter- Base Voltage VEBO :	1.5 V	Maximum DC Collector Current :	0.08 A
DC Collector/Base Gain hfe Min :	30 at 35 mA at 8 V	Configuration :	Single Dual Emitter
Maximum Operating Frequency :	8000 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	Case 86
Packaging :	Bulk

Description

Transistor Polarity : NPN
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Collector- Emitter Voltage VCEO Max : 12 V
Packaging : Bulk
Emitter- Base Voltage VEBO : 1.5 V
Configuration : Single Dual Emitter
Maximum DC Collector Current : 0.08 A
DC Collector/Base Gain hfe Min : 30 at 35 mA at 8 V
Maximum Operating Frequency : 8000 MHz
Package / Case : Case 86

Parameters:

Technical/Catalog Information	AT-42086-BLKG
Vendor	Avago Technologies US Inc.
Category	Discrete Semiconductor Products
Frequency - Transition	8GHz
Noise Figure (dB Typ @ f)	1.9dB ~ 3.5dB @ 2GHz ~ 4GHz
Current - Collector (Ic) (Max)	80mA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 35mA, 8V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Gain	13dB ~ 9dB
Power - Max	500mW
Compression Point (P1dB)	20.5dBm ~ 20dBm
Package / Case	86-SMD
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AT 42086 BLKG AT42086BLKG 516 1860 ND 5161860ND 516-1860
