AT-32032-TR2G, US $ .1-.11 , Avago Technologies, AT-32032-TR2G DataSheet download, circuit diagram from SeekIC.com

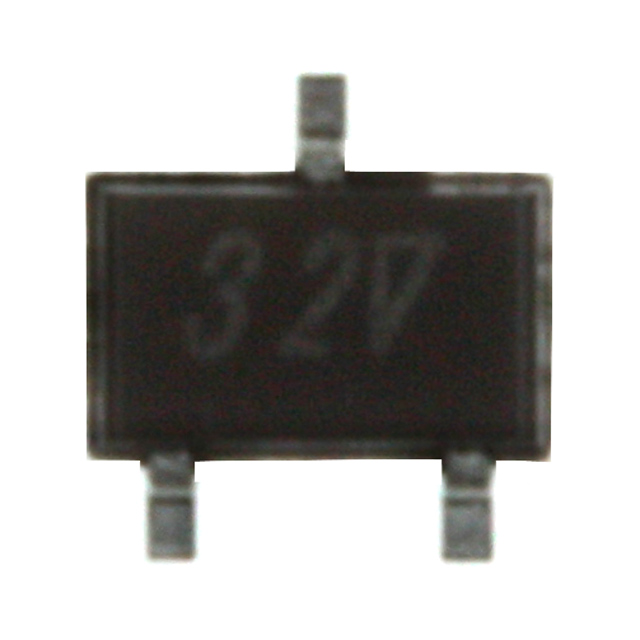

See larger image

SeekIC No. : 00208906 Detail

AT-32032-TR2G: Transistors Bipolar (BJT) Transistor Si Low Current

AT-32032-TR2G Data Sheet

US $ .1~.11 / Piece | Get Latest Price

Part Number:: AT-32032-TR2G
Mfg:: Avago Technologies
Supply Ability:: 5000

Price Break

Qty
0~7400
7400~10000

Unit Price
$.11
$.1

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AT-3 evaluate
US $.6 - .7 / Piece

Fuses BLADE FUSE
AT-3.6864MAGE-T evaluate
US $.24 - .33 / Piece

Crystals 3.6864MHz 30ppm 12pF -40 to 85C
AT-30 evaluate
US $.6 - .7 / Piece

Fuses BLADE FUSE

Product Details

Quick Details

Transistor Polarity :	NPN	Collector- Emitter Voltage VCEO Max :	5.5 V
Emitter- Base Voltage VEBO :	1.5 V	Maximum DC Collector Current :	0.04 A
DC Collector/Base Gain hfe Min :	70 at 5 mA at 2.7 V	Configuration :	Single
Maximum Operating Frequency :	2400 MHz	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	SOT-323
Packaging :	Reel

Description

Transistor Polarity : NPN
Configuration : Single
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Package / Case : SOT-323
Emitter- Base Voltage VEBO : 1.5 V
Maximum DC Collector Current : 0.04 A
Collector- Emitter Voltage VCEO Max : 5.5 V
DC Collector/Base Gain hfe Min : 70 at 5 mA at 2.7 V
Maximum Operating Frequency : 2400 MHz

Parameters:

Technical/Catalog Information	AT-32032-TR2G
Vendor	Avago Technologies US Inc.
Category	Discrete Semiconductor Products
Frequency - Transition	-
Noise Figure (dB Typ @ f)	1dB ~ 1.25dB @ 900MHz ~ 1.8GHz
Current - Collector (Ic) (Max)	30mA
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 5mA, 2.7V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	5.5V
Gain	13.5dB ~ 15dB
Power - Max	200mW
Compression Point (P1dB)	13dBm
Package / Case	SOT-323
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AT 32032 TR2G AT32032TR2G
