AT-266

Features:

• Single 10 dB Step
• Low Loss 0.3dB Typ. @ 900 MHz

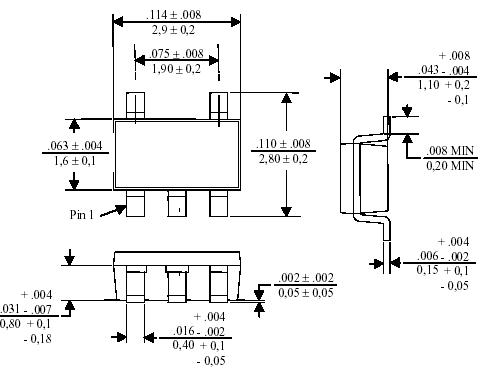

• Low Cost Plastic SOT25 Package

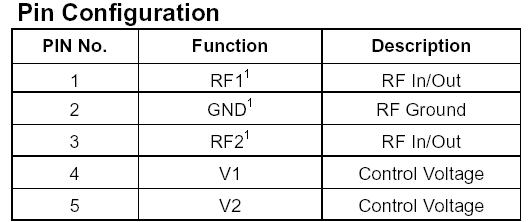

Pinout

Specifications

Parameter	Absolute Maximum
Max. Input Power   50 GHz   500-2000 MHz Control Voltage Operating Temperature Storage Temperature	+27 dBm +34 dBm +5 V, -8.5 V 40°C to +85°C 65°C to +150°C

Description

   M/A-COM's AT-266 is a 1 bit, 10 dB step GaAs MMIC Digital Attenuator in a low cost SOT-25 surface mount plastic package. The AT-266 is ideally suited for use where high accuracy, very low power consumption and low inter-modulation products are required. Typical applications include radio, wireless LANs, GPS equipment and other gain-/level control circuits.

    The AT-266 is a GaAs MMIC using a mature 1 micron process. The process features full chip passivation for in-creased performance and reliability.
