AT-263

Diameter :
Length :
Width :
Depth :
Magnet Material :
Cone Material :
Shape : Round
Termination Style : Solder Pad
Impedance : 8 Ohms
Sound Pressure Level : 80 dBA
Power Rating : 0.1 W
Frequency : 1 KHz +/- 200 Hz


Features:

`  Attenuation: 1 dB steps to 31 dB
`  Temperature Stability: ± 0.18 dB from 55°C to +85°C Typical
`  Low DC Power Consumption
`  Hermetic Surface Mount Package
`  Integral TTL Driver
`  50 Ohm Nominal Impedance

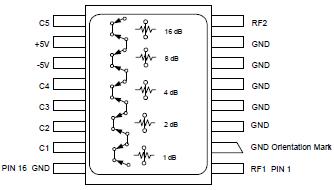

Pinout




Specifications

Parameter	Absolute Maximum
Max Input Power 0.5 GHz 0.5 - 2.0 GHz	+27 dBm +34 dBm
Supply Voltages Vcc Vee	+5.5V -8.5V
Control Voltage 4	-0.5V to Vcc +0.5V
Operating Temperature	-55°C to +125°C
Storage Temperature	-65°C to +120°C

3. Operation of this device above any one of these parameters may cause permanent damage.
4. Standard CMOS TTL interface, latch-up will occur if logic signal is applied prior to power supply.


Description
