AT-250

Features:

12 dB Voltage Variable Attenuation
Low Intermodulation Products
Low DC Power Consumption: 50 µW
Single Voltage Control 0 to -4 Volts
Nanosecond Switching Speed
Temperature Range: -40°C to +85°C
Low Cost SOIC 8 Plastic Package
Tape and Reel Packaging Available¹

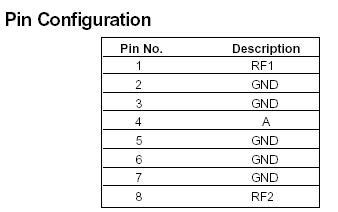

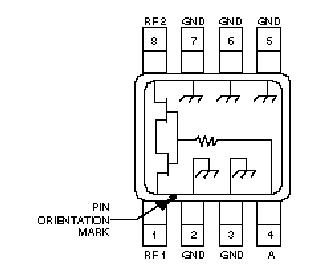

Pinout




Specifications

Parameter	Absolute Maximum
Max. Input Power Control Voltage Operating Temperature Storage Temperature	+21 dBm +5 V, -8.5 V -40°C to +85°C -65°C to +150°C

Description

M/A-COM's AT-250 is a GaAs MMIC voltage variable absorptive attenuator in a low cost SOIC 8-lead surface mount plastic package. The AT-250 is ideally suited for use where attenuation fine tuning, fast switching and very low power consumption are required. Typical applications include radio, cellular, GPS equipment and other Automatic Gain/Level Control circuits.

The AT-250 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased perf o rmance and reliability.
