AT-233

Features:

Attenuation: 2 dB Steps to 30 dB 2
Temperature Stability: ± 0.18 dB from 55°C to +85°C Typical
Low DC Power Consumption
Hermetic Surface Mount Package
Integral TTL Driver
50 Ohm Nominal Impedance

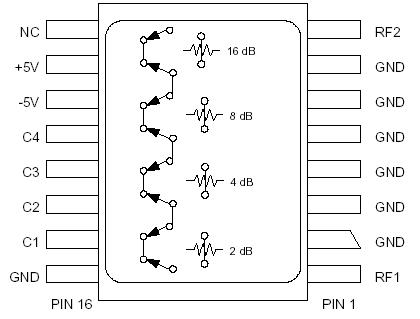

Pinout

Specifications

Parameter	Absolute Maximum
Max Input Power 0.5 GHz 0.5 - 2.0 GHz	+27 dBm +34 dBm
Supply Voltages VCC VEE	+5.5V -8.5V
Control Voltage	-0.5V to VCC + 0.5V
Operating Temperature	-55°C to +125°C
Storage Temperature	-65°C to +150°C

Description

M/A-COM's AT-233 is a GaAs FET 4-Bit digital attenuator with a 2 dB minimum step size and 30 dB total attenua-tion. This attenuator and integral TTL driver is in a hermetically sealed ceramic 16-lead surface mount package. The AT-233 is ideally suited for use where accuracy, fast switching, very low power consumption and low intermodu-lation products are required. Typical applications include dynamic range setting in precision receiver circuits and o-ther gain/leveling control circuits. Environmental screening of AT-233 is available. Contact the factory for information.
