AT-226

Features:

• Single Control CMOS logic for each bit
• Attenuation: 1 dB steps to 15 dB
• Low DC Power Consumtion: 50 uW
• Low Cost Plastic TSSOP - 16 Package

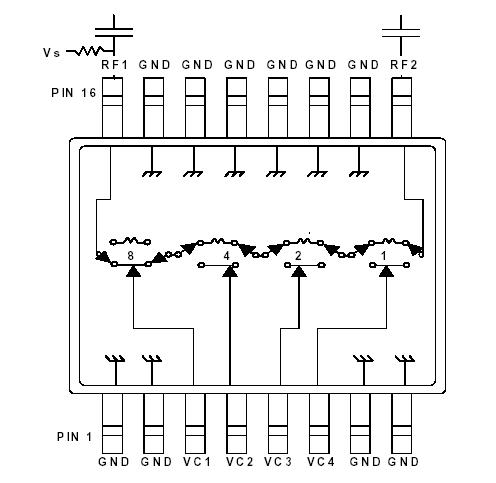

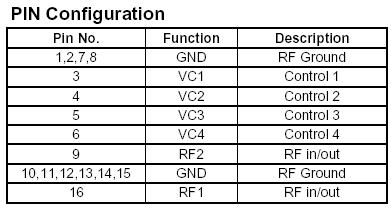

Pinout




Specifications

Parameter	Maximum Ratings
Maximum Input Power       50 MHz       500 - 2000 MHz Control Voltage Operating Temperature Storage Temperature	+27 dBm +34 dBm +8 V, -1.0 V -40°C to +85°C -65°C to +150ºC

Description

The M/A-COM AT-226 is a 4 bit, 1 dB step GaAs MMIC digital attenuator in a low cost TSSOP-16 surface mount plas-tic package. The AT-226 is ideally suited for use where high accuracy, very low power consumption and low inter-modulation products are required. Typical applications include radio, cellular, wireless LANs, GPS equipment and other gain/level control circuits.

The AT-226 is fabricated using mature 1 micron GaAs MESFET process. The process features of AT-226 full chip passivation for increased performance and reliability.
