AT-210

Features:

Attenuation 1-dB Steps to 15 dB
High Accuracy +/-3%
Temperature Stability +/-0.15 dB from -40°C to +85°C
Low Intermodulation Product: +50 dBm IP₃
Low DC Power Consumption: 50 mW
Low Cost SOIC16 Plastic Package
Tape and Reel Packaging Available¹

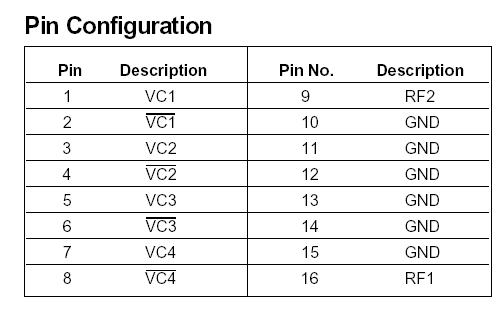

Pinout

Specifications

Parameter	Absolute Maximum1
Max. Input Power     50 GHz     500-2000 MHz Control Voltage Operating Temperature Storage Temperature	+27 dBm +34 dBm +5 V, -8.5 V 40°C to +85°C 65°C to +150°C

Description

M/A-COM's AT-210 is a4-bit,1-dB step GaAs MMIC digital ttenuator in a low cost SOIC16-lead surface mount plastic package. The AT-210 is ideally suited for use where igh accuracy, fast switching, very low power consum-tion nd low intermodulation products are required. Typical pplications include radio, cellular, and wireless LANs, GPS
equipment and other Gain/Level Control circuits.The AT-210 is fabricated with a monolithic GaAs MMIC using a ma-ure 1-micron process. The process features full chip passivation for increased performance and reliability.
