AT-107

Features:

Attenuation: 1 dB steps to 31.5 dB
Temperature Stability: ± 0.18 dB from 55°C to +85°C Typical
Low DC Power Consumption
Hermetic Surface Mount Package
Integral TTL Driver
50 Ohm Nominal Impedance

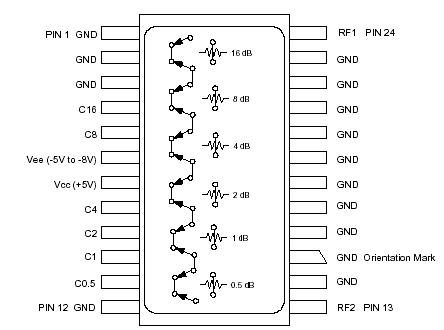

Pinout




Specifications

Parameter	Absolute Maximum
Max Input Power 0.5 GHz 0.5 - 2.0 GHz	+27 dBm +34 dBm
Supply Voltages VCC VEE	+5.5V -8.5V
Control Voltage4	-0.5V to VCC + 0.5V
Operating Temperature	-55°C to +125°C
Storage Temperature	-65°C to +150°C

Description

    M/A-COM's AT-107 is a GaAs FET 6-bit digital attenuator with a 1 dB minimum step size and 31.5 dB total atten-uation. This attenuator and integral TTL driver is in a hermetically sealed ceramic 24-lead surface mount package. The AT-107 is ideally suited for use where accuracy, fast switching, very low power consumption and low inter-modulation products are required. Typical applications of AT-107 include dynamic range setting in precision receiver circuits and other gain/leveling control circuits. Environmental screening is available. Contact the factory for information.
