AT-106

Features: Attenuation: 1 dB steps to 50 dBTemperature Stability: ± 0.18 dB from 55°C to +85°C TypicalLow DC Power ConsumptionHermetic Surface Mount PackageIntegral TTL Driver50 Ohm Nominal ImpedancePinoutSpecifications Parameter Absolute Maximum Max Input Power0.5 GHz0.5 - 2.0 GHz ...

product image

AT-106 Picture
SeekIC No. : 004289225 Detail

AT-106: Features: Attenuation: 1 dB steps to 50 dBTemperature Stability: ± 0.18 dB from 55°C to +85°C TypicalLow DC Power ConsumptionHermetic Surface Mount PackageIntegral TTL Driver50 Ohm Nominal Impedance...

floor Price/Ceiling Price

Part Number:
AT-106
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Attenuation: 1 dB steps to 50 dB
Temperature Stability: ± 0.18 dB from 55°C to +85°C Typical
Low DC Power Consumption
Hermetic Surface Mount Package
Integral TTL Driver
50 Ohm Nominal Impedance



Pinout

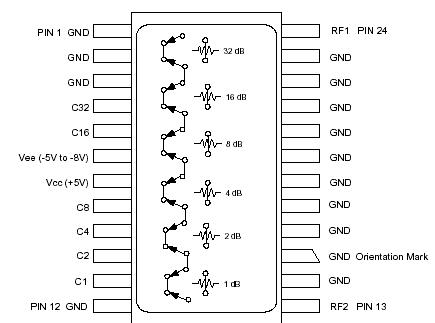

  Connection Diagram


Specifications

Parameter
Absolute Maximum
Max Input Power
0.5 GHz
0.5 - 2.0 GHz


+27 dBm
+34 dBm
Supply Voltages
VCC
VEE


+5.5V
-8.5V
Control Voltage4
-0.5V to VCC + 0.5V
Operating Temperature
-55°C to +125°C
Storage Temperature
-65°C to +150°C



Description

A-COM's AT-106 is a GaAs FET 6-bit digital attenuator with a1dB minimum step size and 50dB total ttenuation.This attenuator and integral TTL driver is in a hermetically sealed ceramic 24-lead surface mount package. The AT-106 is ideally suited for use where accuracy,fast switching, very low power consumption and low intermodu-lation roducts are required. Typical applications of AT-106 include dynamic ange setting in precision receiver circuits and other ain/leveling control circuits. Environmental screening is vailable. Contact the factory for information.
