ASSR-302C-002E

Solid State Relays SSR(CR+2A) (250V 0.05A)

product image

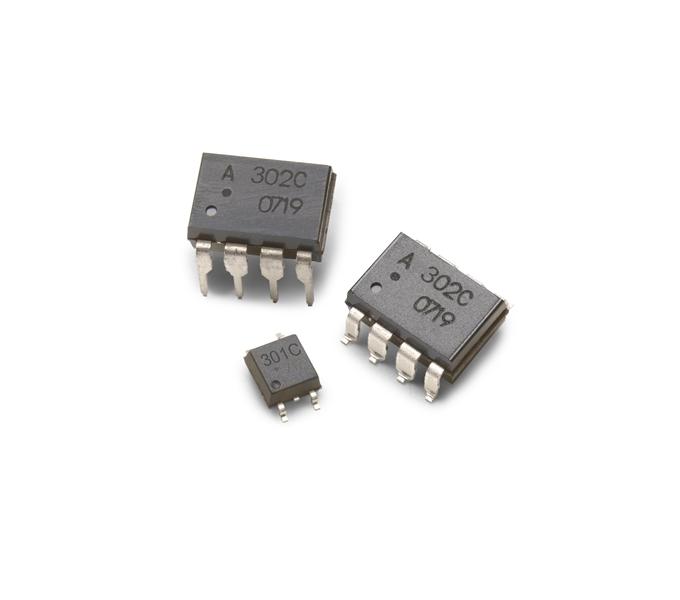

ASSR-302C-002E Picture
See larger image
SeekIC No. : 0090501 Detail

ASSR-302C-002E: Solid State Relays SSR(CR+2A) (250V 0.05A)

ASSR-302C-002E Data Sheet

floor Price/Ceiling Price

US $ 2.68~4.09 / Piece | Get Latest Price
Part Number:
ASSR-302C-002E
Mfg:
Avago Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $4.09
  • $3.35
  • $2.98
  • $2.68
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Control Voltage Range : 0.8 V
Load Voltage Rating : 250 V Load Current Rating : 0.05 A
Contact Form : 2 Form A (DPST-NO) Output Device : MOSFET
Package / Case : DIP-8

Description

Mounting Style :
Product Type : PCB Mount
Output Device : MOSFET
Package / Case : DIP-8
Control Voltage Range : 0.8 V
Load Voltage Rating : 250 V
Load Current Rating : 0.05 A
Contact Form : 2 Form A (DPST-NO)


Description

The ASSR-30xC Solid State Relay series is specifically designed for fast switching applications, commonly found in the test and measurement systems. The low C x R and low output off-state leakage current provide higher system throughput and reduce system errors.

The dual channel configuration of ASSR-302C is equivalent to 2 Form A Electromechanical Relays (EMR). One channel of the relay consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 1mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less.

ASSR-301C is available in 4-pin SO package and ASSR-302C is available in 8-pin DIP and Gull Wing Surface Mount packages. Their electrical and switching characteristics are specified over the temperature range of -40°C to 85°C.
