ASM2I2304NZF-08-TR

Features: ·One input to four Output Buffer/Driver·General-purpose or PCI-X clock buffer·Buffers all frequencies from DC to 140 MHz·Output-to-output skew less than 100 pS·Space-saving 8-pin TSSOP Package·3.3V operationPinoutSpecifications Parameter Min Max Unit Supply Voltage to Ground...

product image

ASM2I2304NZF-08-TR Picture
See larger image
SeekIC No. : 004288944 Detail

ASM2I2304NZF-08-TR: Features: ·One input to four Output Buffer/Driver·General-purpose or PCI-X clock buffer·Buffers all frequencies from DC to 140 MHz·Output-to-output skew less than 100 pS·Space-saving 8-pin TSSOP Pac...

ASM2I2304NZF-08-TR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ASM2I2304NZF-08-TR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·One input to four Output Buffer/Driver
·General-purpose or PCI-X clock buffer
·Buffers all frequencies from DC to 140 MHz
·Output-to-output skew less than 100 pS
·Space-saving 8-pin TSSOP Package
·3.3V operation

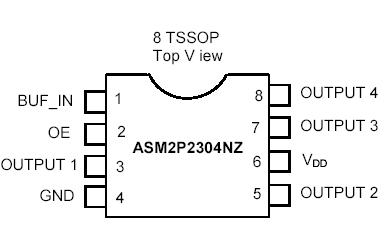

Pinout

Connection Diagram


Specifications

Parameter Min Max Unit
Supply Voltage to Ground Potential -0.5 7 V
DC Input Voltage (Except REF) -0.5 VDD + 0.5 V
DC Input Voltage (REF) -0.5 7 V
Storage Temperature -65 +150 °C
Max. Soldering Temperature (10 sec)   260 °C
Junction Temperature   150 °C
Static Discharge Voltage
(As per JEDEC STD22- A114-B)		   2000 V



Description

The ASM2P2304NZ is a low-cost buffer designed to distribute high-speed clocks for PCI-X and other applications. The device operates at 3.3V and outputs can run up to 140 MHz.
