ASM1817

Features:

• Low Supply Current
•20 µA maximum (5.5 V)
•15 µA maximum (3.6 V)
• Automatically restarts a microprocessor after power failure
• 150ms reset delay after VCC returns to an in-tolerance condition
• Active HIGH power-up reset
• Precision temperature-compensated voltage reference and comparator
• Eliminates external components
• TO-92 and compact surface mount SOT-23 package
• Push-Pull output for minimum current drain
• Operating temperature -40°C to +85°C



Application

• Set-top boxes
• Cellular phones
• PDAs
• Energy management systems
• Embedded control systems
• Printers
• Single board computers

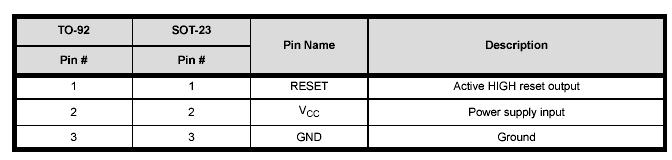

Pinout

Specifications

Parameter	Min	Max	Unit
Voltage on VCC	-0.5	7	V
Voltage on RESET	-0.5	VCC + 0.5	V
Operating Temperature Range	-40	85	°C
Soldering Temperature (for 10 sec)		260	°C
Storage Temperature	-55	125	°C
ESD rating HBM MM		2 200	KV V
NOTE: These are stress ratings only and functional use is not implied. Exposure to absolute maximum ratings for prolonged periods of time may affect device reliability.

Description

The ASM1817 voltage supervisory device with low-power, 3.3V/3.0V µP Reset, active HIGH, Push-Pull output. Maximum supply current over temperature is a low 15µA (at 3.6V).
The ASM1817 generates an active HIGH reset signal whenever the monitored supply is out of tolerance. A precision reference and comparator circuit monitor power supply (VCC) level. Tolerance level options are 5%, 10% and 20% percent. When an out-of-tolerance condition is detected, an internal power-fail signal is generated which forces an active HIGH reset signal. After VCC returns to an in-tolerance condition, the reset signal remains active for 150ms to allow the power supply and system microprocessor to stabilize.
The ASM1817 is designed with a push-pull output stage and operates over the extended industrial temperature range. Devices are available in TO-92 and compact surface mount SOT-23 packages.
Other low power products in this family include the ASM1810/11/12/15/16, ASM1233D and ASM1233M.
