AS998/A

Features: • Low start-up current 64 A (Typ)• Low running current 2 mA (Typ)• Low power light load mode• Low power standby when OV is activated• Extended commercial operating temperature range: 0 to 105°C• On-board fixed frequency oscillator 100 kHz (Typ)• ...

product image

AS998/A Picture
See larger image
SeekIC No. : 004288631 Detail

AS998/A: Features: • Low start-up current 64 A (Typ)• Low running current 2 mA (Typ)• Low power light load mode• Low power standby when OV is activated• Extended commercial oper...

AS998/A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS998/A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low start-up current 64 A (Typ)
• Low running current 2 mA (Typ)
• Low power light load mode
• Low power standby when OV is activated
• Extended commercial operating temperature range: 0 to 105°C
• On-board fixed frequency oscillator 100 kHz (Typ)
• Frequency randomizer to reduce EMC emissions
• Dedicated OV shutdown pin
• On-board voltage ramp compensation
• On-board current sensing filtering
• Optional primary side regulation

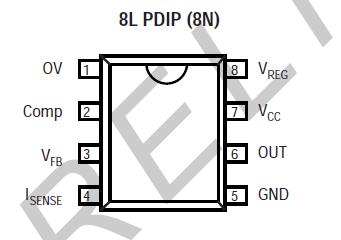

Pinout

Connection Diagram


Specifications

Rating
Symbol
Rating
Unit
Supply Voltage (Low Impedance Source)
VDD
13
V
Supply Current (High Impedance Source)
IDD
15
mA
Output Peak Current
IOUT
600
mA
Regulator Current
IREG
10
mA
Continuous Power at25 8l SOIC
8L PDIP
PD
75
1000
mW
mW
Junction Temperature
TJ
150
°C
Storage Temperature
TSTG
65 to 150
°C
Lead Temperature, Soldering 10 Seconds
TL
300
°C
Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The AS998/AS998A is an IC intended for use as a PWM controller for switch mode power supplies. The device is particularly suited as a primary side controller for adapter, printer, peripheral, mobile chargers and desktop auxiliary power supplies. The AS998/AS998A is manufactured in BICMOS technology and exhibits very low start-up and operating power. This allows the device to be suitable in applications where stringent standby or Blue Angel criteria are required.

Many of the external functions associated with PWM controllers AS998/A have been integrated into the AS998/AS998A allowing the external component count to be significantly reduced. Features such as fixed internal oscillator, internal ramp compensation and current filters all reduce the external support components.

The AS998/AS998A has a typical output rise and fall time of 250/210 ns.
