AS8168

The AS8168 is a very accurate single-phase bi-directional average energy measurement integrated circuit, which surpasses all the accuracy requirements for IEC1036 alternating current static watt-hour meters. The measured energy is converted into pulses with the number of output pulses being proportional to the measured energy.

The AS8168 is ideal for use in 'stand alone' kWh meter applications, where the IC directly drives an electromechanical counter with a 2-phase stepper motor, or for more complex meter applications, the AS8168 interfaces directly to a micro-controller.

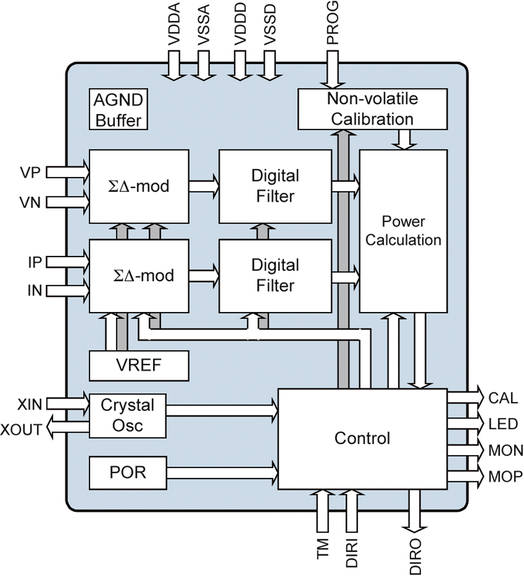

The highly integrated AS8168 design includes all the required functional blocks. The blocks comprise of analog to digital converters (ADC) for the voltage and current channels, digital filters, a digital signal processing block, a control block and non-volatile calibration memory for the on-chip programming. The on-chip programming enables the setting of the current input gain, the anti-creep threshold, the output pulse rates and the system calibration. The high level of integration ensures a minimum number of non-critical external components are required.

The on-chip anti-creep circuit ensures that the AS8168 does not output pulses when the meter is in a no-load condition and that the IEC1036 anti-creep test requirements are fully complied with, for both direct or transformer connection meters.

The AS8168 offers 3 different pulse outputs: a stepper motor drive output for directly driving a stepper motor display, a LED output for energy consumption indication and a dedicated high frequency output for fast single point system calibration.

The AS8168 is available in either surface mount SOIC-18 or dual-in-line DIP-18 packages.
