Features:

` Temperature-compensated:50 ppm/°C
` Trimmed 0.5% typical bandgap reference
`High gain Internal amplifier with 100 mA capability
` Nominal temperature range extended to 105° C
`Low frequency dynamic output impedance: < 150 m
` Low output noise

Pinout

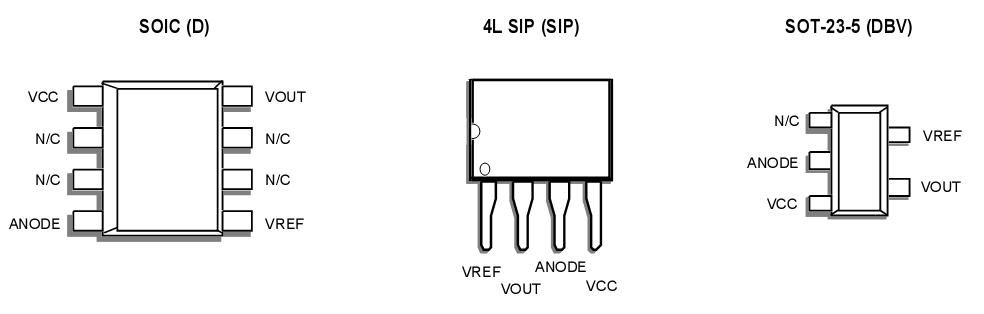

Connection Diagram

Specifications

Parameter	Symbol	Rating	Units
Supply Voltage	VCC	18	V
Output Voltage	V_OUT	18	V
Anode-VOUT Forward Current	I_AO	1	A
Operating Output Current	I_OUT	100	mA
Reference Input Current	I_REF	1	mA
Continuous Power at 25° C 8L SOIC 4L SIP SOT-23-5	P_D	750 1000 200	mW mW mW
Junction Temperature	T_J	150	°C
Storage Temperature	T_STG	65 to 150	°C
Lead Temperature (Soldering 10 Sec.)	T_L	300	°C

Description

The AS535 is a three terminal adjustable shunt regulator utilizing an accurate 2.5V bandgap reference. The AS535 is functionally similar to an AS2431 except that the reference and amplifier operate off of a seperate supply from the output, allowing very low output voltges (0.1V Typically)

Because of its robust bipolar technology, the AS535 handles a wide range of current, and holds off up to 18V so its use is not limited to low power, low voltage systems. Significant care has been taken to provide adequate AC bandwidth to allow the AS535 as an amplifier in control systems and power electronics. ASTEC also offers a 1.0% version of this part, the A535.
