AS3688

Series: -
Constant Current: -
Type: -
Constant Voltage: -
Efficiency: -
Current - Output / Channel: -
Frequency: -
Internal Switch(s): -
Mounting Type: Surface Mount
Internal Driver: Yes
Voltage - Supply: 3 V ~ 5.5 V
Package / Case: 32-VFQFN Exposed Pad
Number of Outputs: 12
Packaging: Tray
Operating Temperature: -
Voltage - Output: 25V
Manufacturer: ams
Type - Primary: Backlight, Flash/Torch, Light Management Unit (LMU)
Supplier Device Package: 32-QFN (5x5)
Topology: PWM, Switched Capacitor (Charge Pump), Step-Up (Boost)
Type - Secondary: OLED, RGB, White LED

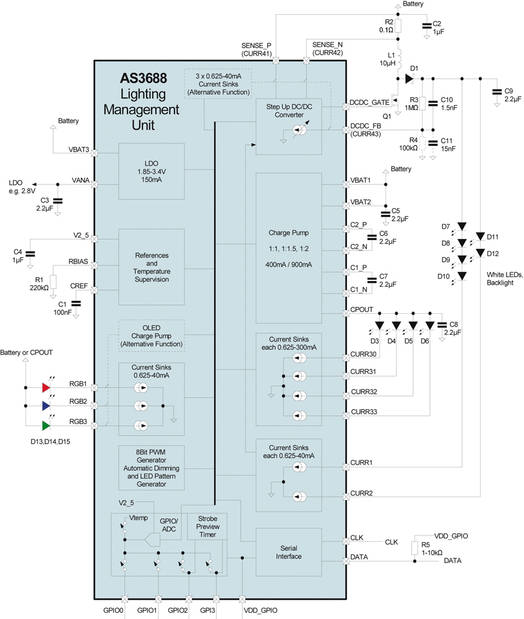

Pinout




Description

The AS3688 is a highly-integrated CMOS Power and Lighting Management Unit to supply power to LCD-and cameramodules in mobile telephones, and other 1-cell Li+ or 3-cell NiMH powered devices.

The Device AS3688 incorporates one low-power, lowdropout regulator (LDO), one Step Up DC/DC Converter for white backlight LEDs, one high-power Charge Pump for camera flash LEDs, one Analogto- Digital Converter, support for up to 11 current sinks, a two wire serial interface, and control logic all onto a single device. Output voltages of AS3688 and output currents are fully programmable.

The AS3688 is a successor to the austrimicrosystems AS3681 with several additional features (Charge Pump Automatic Up Switching, Extended timer features, autonomous logarithmic PWM dimming, LED pattern generator, DCDC step up overvoltage protection, improved Charge Pump and a fourth high current sink).
