AS3588A

Features: 8-Line x 32 PCM Channel Inputs8-Line x 32 PCM Channel Output256 Ports Non Blocking Time/Space Crosspoint SwitchSingle Power Supply of 5VLow Power ConsumptionMicroprocessor Control InterfaceOpen Drain Serial OutputsCMOS ProcessSimultaneous Connection/Disconnection under Microprocessor Con...

product image

AS3588A Picture
See larger image
SeekIC No. : 004288300 Detail

AS3588A: Features: 8-Line x 32 PCM Channel Inputs8-Line x 32 PCM Channel Output256 Ports Non Blocking Time/Space Crosspoint SwitchSingle Power Supply of 5VLow Power ConsumptionMicroprocessor Control Interfac...

AS3588A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS3588A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 8-Line x 32 PCM Channel Inputs
 8-Line x 32 PCM Channel Output
 256 Ports Non Blocking Time/Space Crosspoint  Switch
 Single Power Supply of 5V
 Low Power Consumption
 Microprocessor Control Interface
 Open Drain Serial Outputs
 CMOS Process
 Simultaneous Connection/Disconnection  under Microprocessor Control
Extraction/Insertion of Single PCM Channels
Channel Zero Extraction

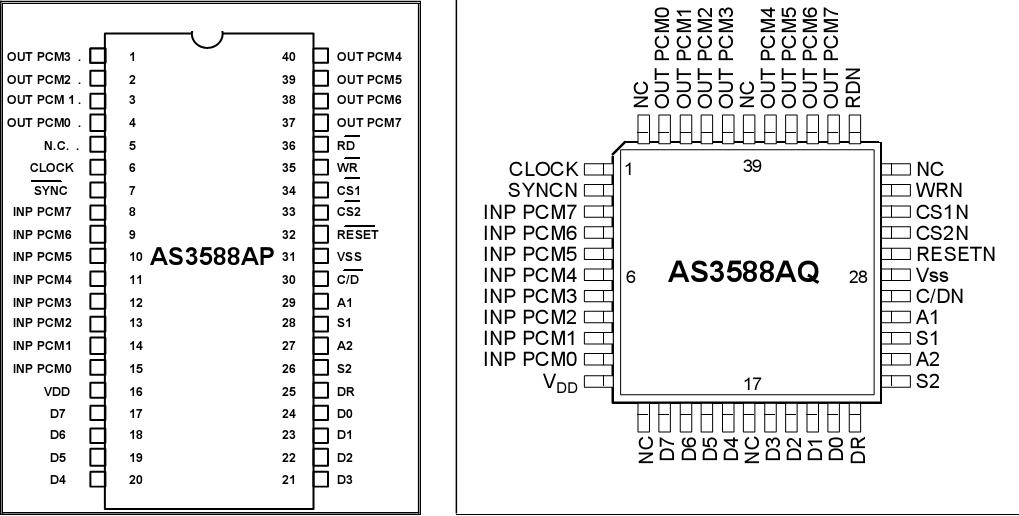

Pinout

Connection Diagram


Specifications

Supply Voltage................................................................................................................................-0.32VCC27V
Voltage on Digital Inputs ...................................................................................................-0.3V2VIN2VCC+0.3V
Voltage on Digital Outputs..........................................................................................................Vout2VCC+0.3V
Total Package Power Dissipation.................................................................................................................1.5W
Storage Temperature Range.......................................................................................................-65 to +150 °C


Description

AS3588A is designed for switching PCM channels under microprocessor control in digital exchanges,PBX or Central Office equipment. It provides a non blocking digital switching matrix for up to 256x25664 kbit/sec channels.


Each of the eight serial inputs and outputs of AS3588A consists of 32 64 kbit/sec channels multiplexed to/from a 2048 kbit/sec serial PCM  bit stream.


Simultaneously AS3588A allows its controlling microprocessor to read PCM output channels or to write to PCM output channels.
