Features: Plastic package has Underwriters Laboratory Flammability Classification 94V-0
High temperature stability due to unique oxide passivation
Patented Passivated Anisotropic Rectifier (PAR) construction
Integrally molded heatsink provides a very low thermal resistance for maximum heat dissipation
Low leakage current at TJ=175°C
Low forward voltage drop
Ideally suited for alternator rectification and load dump protection
High temperature soldering guaranteed: 260°C for 10 seconds at terminalsPinout
Specifications
|
SYMBOLS |
AS3524 |
AS3528 |
Units |
| Maximum working peak stand-off voltage |
VWM |
18.0 |
20.0 |
Volts |
| Minimum reverse breakdown voltage at 100mA |
V(BR) |
20.0 |
24.0 |
Volts |
| Maximum reverse breakdown voltage at 100mA |
V(BR) |
28.0 |
32.0 |
Volts |
Maximum clamping voltage for 10ms/10ms exponentially
decaying waveform at IPP=60A |
VC |
38.0 |
40.0 |
Volts |
| Maximum average rectified forward current at TC=150°C |
I(AV) |
35.0 |
Amps |
Peak forward surge current, 8.3ms single half sine-wave
on rated load (JEDEC Method) |
IFSM |
600.0 |
Amps |
| Maximum instantaneous forward voltage at 100A(NOTE 1) |
VF |
1.00 |
Volts |
Non- repetitive peak reverse surge current for 10ms/10ms
exponentially decaying waveform (see figure 3) |
IRSM |
65.0 |
Amps |
| Maximum reverse leakage current at rated VWM |
TJ=25°C |
IR |
0.5 |
A |
| TJ=175°C |
20.0 |
| Maximum thermal resistance junction to case(NOTE 2) |
RJC |
0.95 |
°C/W |
| Operating junction and storage temperature range |
TJ, TSTG |
-55 to +200 |
°C |

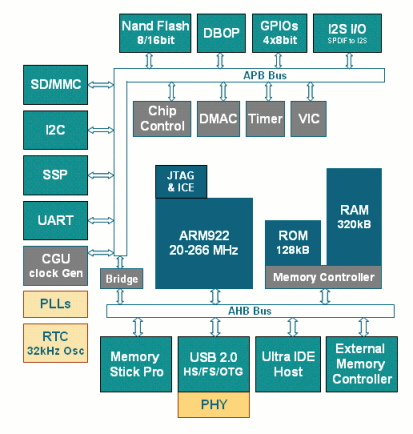

DescriptionThe AS3524 is an ultra low-power microcontroller based on the ARM9 32bit processor combining strong calculating power and high performance interfaces commonly used within various application systems.
Using advanced 0.13m process technology of AS3524 and a large on chip RAM leads to outstanding low power consumption of 0.3 mW/MHz for the ARM922T microcontroller core and 0.6 mW/MHz for the overall system measured with a typical audio SW application.
AS3524 is based on the ARM922TDMI processor, with 8K byte instruction, 8K byte data cache memories and embedded 320K Byte SRAM with performance from 20 ~ 266MHz.
The AS3524 SOC (system-on-a-Chip) features dedicated high speed interfaces for ATA IDE, USB2.0 HS-OTG and SDRAM ensuring maximum performance for download, upload, and playback.
Furthermore interfaces for NAND flashes, MMC/SD cards and Memory Stick ensure most flexible system design possibilities. Hardware of AS3524 support for parallel interfaces lower the CPU load serving complex and/or color user interfaces.
Additional serial high-speed data of AS3524 and control interfaces guarantee the connection to other peripherals and or processors in the system.
Two independently programmable PLLs AS3524 generate the required frequencies for audio playback/recording, for the processor core and for the USB interface at the same time.
AS3524 is available in a small footprint of 10x10mm, 180 CTBGA RoHS-compliant package.
