AS3518

IC CODEC AFE AUDIO STER 64-CABGA

product image

AS3518 Picture
SeekIC No. : 003537296 Detail

AS3518: IC CODEC AFE AUDIO STER 64-CABGA

floor Price/Ceiling Price

Part Number:
AS3518
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: ams
Type: Audio Codec Applications: Portable Audio, Telephony
Mounting Type: Surface Mount THD plus Noise : 103 dB
Package / Case: 64-TFBGA Supplier Device Package: 64-CTBGA (7x7)

Description

Series: -
Mounting Type: Surface Mount
Packaging: Tray
Applications: Portable Audio, Telephony
Manufacturer: ams
Type: Audio Codec
Package / Case: 64-TFBGA
Supplier Device Package: 64-CTBGA (7x7)


Pinout

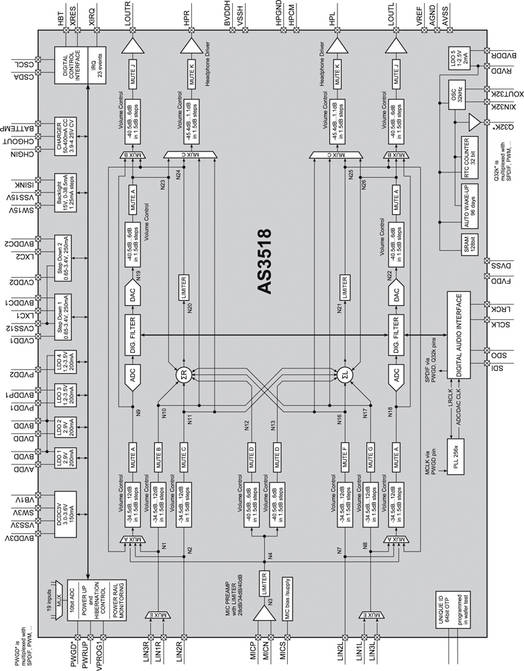

  Connection Diagram


Description

The AS3518 is a low power stereo audio codec and is designed for Portable Digital Audio Applications. It allows playback and recording in CD quality. AS3518 has a variety of audio inputs and outputs to directly connect electret microphones, 16/32 headsets and auxiliary signal sources via a 10-channel mixer. It consumes less than 20mW in playback mode.

Further the device offers advanced power management functions. All necessary ICs and peripherals in a Digital Audio Player are supplied by the AS3518. The different regulated supply voltages are programmable via the serial control interface. AS3518 also contains a Li-Io battery charger. The single supply voltage may vary from 1.0V to 5.5V.

The AS3518 has an on-chip, phase locked loop (PLL) which generates the needed internal CODEC master clock. I2S Frame and shift-clock has to be applied from the processor for playback and recording. Further the AS3518 has an independent 32kHz real time clock (RTC) on chip which allows a complete power down of the system CPU.
