AS2533

Power (Watts): -
Interface: -
Current - Supply: -
Voltage - Supply: -
Series: *
Manufacturer: ams
Function: -
Number of Circuits: -
Operating Temperature: -
Mounting Type: -
Package / Case: -
Supplier Device Package: -
Packaging: -


Features:

· Line/speech circuit, LD/MF repertory dialler and tone ringer on one 28 pin CMOS chip
· Operating range from 13 to 100 mA (down to 5 mA with reduced performance)
· Soft clipping to avoid harsh distortion
· Volume control of receive signal
· Line loss compensation selectable by pin option
· Low noise (max. - 72 dBmp)
· Real or complex impedance
· NET 4 compatible
· LD/MF switchable dialling
·Pacifier tone during programming
· 31 digit last number redial
· Repertory memories (not AS2534), 4 direct/10 indirect (AS2533/6), 12 direct (AS2535)
· Repeat dialling by busy or engaged (not AS2535)
· Sliding cursor protocol with comparison
· Pause key for access pause or wait function
· 3 flash keys, 100 ms, 280 ms and 375/600 ms
· On chip MF filter (CEPT CS 203 compatible)
· Ring frequency discrimination
· 3-tone melody generator




Application

· For application support contact your local sales offices




Pinout








Specifications

Positive Supply Voltage ................................ -0.3V _VDD 7V
Input Current ............................................................. ± 25 mA
Input Voltage (LS) ....................................... ..-0.3V V_IN 10V
Input Voltage (LI, CS) ...................................... -0.3V V_IN 8V
Input Voltage (STB, RI) ........................ -.2V V_IN V_DD + 0.3V
Input Voltage (MO) ..................................... -0.3V V_IN +35V
Digital Input Voltage ...........................-0.3V V_IN V_DD + 0.3V
Electrostatic Discharge ............................................... ± 1000V
Storage Temperature ................................... -65°C to +125°C




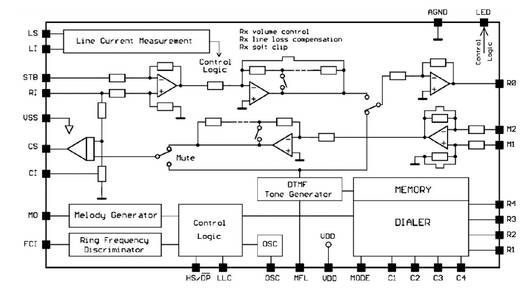

Description

The AS2533 is a very flexible CMOS integrated circuit family that contains all the functions needed to build a high performance electronic telephone set with basic features.

The AS2533 incorporates a line interface, a speech circuit, a dialler and ringer. It is a real single-chip / single-die IC with 28 pins. It allows either package mounting or chip-onboard mounting.

The AS2533 is available in 4 versions (pin-compatible) with different features ranging from LNR only (last number redial) to 4 direct (one-touch) memories and 10 indirect (two-touch) memories. The sliding cursor procedure makes the LNR function easy to use under various PABX systems.

The versatility of the AS2533 is provided by pin options and a few external components. This allows fast time-to-market and easy adaptation to different PTT requirements. A unique EMI performance has been achieved due to the consequent use of CMOS amplifiers.

The AS2533 is a CMOS integrated circuit that contains all the functions needed to form a high performance electronic telephone.

The AS2533 incorporates LD/MF repertory dialling, melody generation, ring frequency discrimination and a high quality line/speech circuit.

A RAM is on chip for a 31 digit last number redial and memories (not AS2534) each containing up to 21 digits/data. The sliding cursor procedure makes the LNR function easy to use under various PABX systems. Also centrex keys (not AS2535) are provided.

The AS2533 incorporate a volume control for the earpiece. The volume can be controlled by the VOL key (+ 5.4 dB) or by the /+ keys (+8.1 dB/-5.4 dB in 5 steps).

The versatility of the AS2533 is provided by pin options and a few external components. This allows easy adaptation to different PTT requirements.
