AS1976

PinoutDescriptionThe AS1976/AS1977 are very low-current comparators that can operate beyond the rail voltages and are guaranteed to operate down to 1.8V Low input bias current, current-limiting output circuitry, and ultra-small packaging make these comparators ideal for low-power 2-cell applicatio...

product image

AS1976 Picture
SeekIC No. : 004288232 Detail

AS1976: PinoutDescriptionThe AS1976/AS1977 are very low-current comparators that can operate beyond the rail voltages and are guaranteed to operate down to 1.8V Low input bias current, current-limiting outp...

floor Price/Ceiling Price

Part Number:
AS1976
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

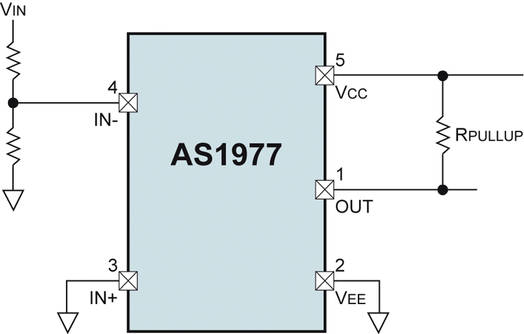

  Connection Diagram


Description

The AS1976/AS1977 are very low-current comparators that can operate beyond the rail voltages and are guaranteed to operate down to 1.8V Low input bias current, current-limiting output circuitry, and ultra-small packaging make these comparators ideal for low-power 2-cell applications including power-management and power-monitoring systems.

The comparators are available as following standard products:

Model

Output Type

Current

AS1976

Push/Pull

200nA

AS1977

Open-Drain

200nA

The AS1976 push/pull output can sink or source current.

The AS1977 open-drain output can be pulled beyond VCC to a maximum of 3.6V > VEE. These open-drain versions are ideal for use as logic-level translators or bipolar-to-unipolar converters.

Large internal output drivers provide rail-to-rail output swings with loads up to 8mA. All devices feature built-in battery power-management and power-monitoring circuitry.

The AS1976/AS1977 are available in a 5-pin SOT23 package.
