AS1973

Series: -
Type: General Purpose
Current - Output (Typ): -
Mounting Type: Surface Mount
Number of Elements: 2
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Operating Temperature: -40°C ~ 85°C
Current - Input Bias (Max): 1pA @ 5.5V
Packaging: Tube
CMRR, PSRR (Typ): 80dB CMRR, 80dB PSRR
Current - Quiescent (Max): 32µA
Output Type: CMOS, Open-Drain, Rail-to-Rail
Voltage - Supply, Single/Dual (±): 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V
Hysteresis: ±3mV
Manufacturer: ams
Voltage - Input Offset (Max): 6mV @ 5.5V
Propagation Delay (Max): 400ns

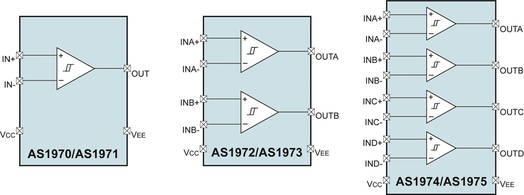

Pinout




Description

The AS1970 - AS1975 are single/dual/quad comparators that operate with supplies from 2.5 to 5.5V making them perfect for all 3 volt applications. The comparators AS1973 can also operate with dual supplies (±1.25 to ± 2.75V), and require very little supply current (8.5A) with minimal propagation delay (300ns). Low input bias current (1.0pA, typ), low input offset voltage (0.5mV, typ), and internal hysteresis (3mV) make AS1973 ideal for low-power single-cell applications including power-management and power monitoring systems. Large internal output drivers allow Rail-to-Rail output swings with loads of up to 8mA.

Model	Output Type	Comparators	Package
AS1970	Push/Pull	Single	SOT23-5
AS1971	Open-Drain	Single	SOT23-5
AS1972	Push/Pull	Dual	MSOP 8
AS1973	Open-Drain	Dual	MSOP 8
AS1974	Push/Pull	Quad	TSSOP 14
AS1975	Open-Drain	Quad	TSSOP 14
