AS1970

PinoutDescriptionThe AS1970 - AS1975 are single/dual/quad comparators that operate with supplies from 2.5 to 5.5V making them perfect for all 3 volt applications. The comparatorsof AS1970 can also operate with dual supplies (±1.25 to ± 2.75V), and require very little supply current (8.5A) with min...

product image

AS1970 Picture
SeekIC No. : 004288230 Detail

AS1970: PinoutDescriptionThe AS1970 - AS1975 are single/dual/quad comparators that operate with supplies from 2.5 to 5.5V making them perfect for all 3 volt applications. The comparatorsof AS1970 can also o...

floor Price/Ceiling Price

Part Number:
AS1970
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

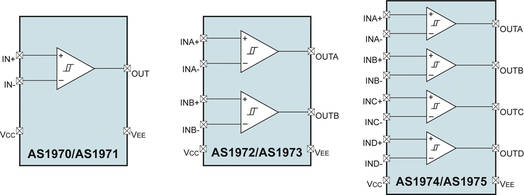

  Connection Diagram


Description

The AS1970 - AS1975 are single/dual/quad comparators that operate with supplies from 2.5 to 5.5V making them perfect for all 3 volt applications. The comparators of AS1970 can also operate with dual supplies (±1.25 to ± 2.75V), and require very little supply current (8.5A) with minimal propagation delay (300ns). Low input bias current (1.0pA, typ), low input offset voltage (0.5mV, typ), and internal hysteresis (3mV) make these comparators ideal for low-power single-cell applications including power-management and power monitoring systems. Large internal output drivers allow Rail-to-Rail output swings with loads of up to 8mA.

Model

Output Type

Comparators

Package

AS1970

Push/Pull

Single

SOT23-5

AS1971

Open-Drain

Single

SOT23-5

AS1972

Push/Pull

Dual

MSOP 8

AS1973

Open-Drain

Dual

MSOP 8

AS1974

Push/Pull

Quad

TSSOP 14

AS1975

Open-Drain

Quad

TSSOP 14
