Product Details

Description



Features:

+2.5 to +5 V Linear Operation P-0.1 dB  37 dbm
Harmonics H2, H3 > 65 dBc @ PIN = 34.5 dBm
Low Insertion Loss (0.5 dB @ 0.9 GHz)
Ultra Miniature SOT-6 Package
PHEMT Process




Pinout

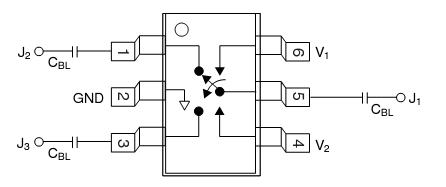

  Connection Diagram


Description

The AS190-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package.This switch has been  designed for use where extremely high linearity, low control voltage, low insertion loss and ultra miniature package size are required.It can be controlled with positive,negative or a combination of both voltages.Some standard implementations include antenna changeover, T/R and diversity switching over 3 W.The AS190-73 switch can be used in many analog and digital wireless communication systems including cellular, GSM and DECT applications.
