AS150-59

Features:

High Linearity (IP3 55 dBm @ 1.9 GHz)
High Isolation (22 dB @ 1.9 GHz)
Low Insertion Loss (0.55 dB @ 1.9 GHz)
Low DC Power Consumption
Positive 3 V or 5 V Control Voltage

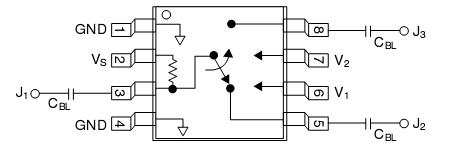

Pinout




Specifications

Characteristic	Value
RF Input Power	6 W Max. > 900 MHz 0/+5 V Control
Supply Voltage	+8 V
Control Voltage	-0.2 V, +8 V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +150°C
JC	85°C/W

Description

The AS150-59 is an IC FET SPDT switch in a MSOP-8 plastic package.AS150-59 switch has been designed for use where extremely high linearity and low insertion loss are required. AS150-59 is controlled with positive voltage eliminating the need for negative voltage.Some standard  implementations include antenna changeover, T/R and diversity switching over 2 W.The  AS150-59 switch can be used in many analog and digital wireless communication systems.
