AS1361

PinoutDescriptionThe AS1361/AS1362 are ultra-low-noise, low-dropout linear regulators specifically designed to deliver up to 150/300mA continuous output current, and can achieve a low 140mV dropout for 300mA load current. The LDOs are designed and optimized to work with low-cost, small-capacitance...

product image

AS1361 Picture
SeekIC No. : 004288148 Detail

AS1361: PinoutDescriptionThe AS1361/AS1362 are ultra-low-noise, low-dropout linear regulators specifically designed to deliver up to 150/300mA continuous output current, and can achieve a low 140mV dropout ...

floor Price/Ceiling Price

Part Number:
AS1361
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

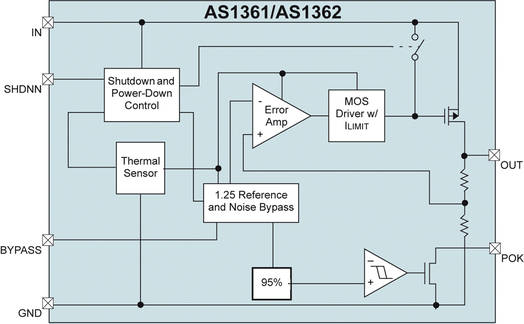

  Connection Diagram


Description

The AS1361/AS1362 are ultra-low-noise, low-dropout linear regulators specifically designed to deliver up to 150/300mA continuous output current, and can achieve a low 140mV dropout for 300mA load current. The LDOs are designed and optimized to work with low-cost, small-capacitance ceramic capacitors.

An integrated P-channel MOSFET pass transistor AS1360 allows the devices to maintain extremely low quiescent current (40A).

The AS1361/AS1362 uses an advanced architecture to achieve ultra-low output voltage noise of 9VRMS and a power-supply rejection-ratio of better than 80dB (up to 10kHz) and 92dB @ 1kHz.

An active-Low, open-drain power-ok output indicates if the output voltage of AS1360 is within regulation.

The AS1361/AS1362 requires only 1F output capacitor for stability at any load. When the LDO is disabled, current consumption drops below 500nA.

AS1360 are available in a TSOT23 6-pin package.
