PinoutDescriptionThe AS1353/AS1356 are high-performance, fixed-voltage linear LDOs designed for use with capacitors of 1 to 10F. The devices can deliver superior performance even under low dropout conditions when the power transistor operates in linear mode. The integrated P-channel MOSFET output...

product image

AS1356 Picture
SeekIC No. : 004288144 Detail

AS1356: PinoutDescriptionThe AS1353/AS1356 are high-performance, fixed-voltage linear LDOs designed for use with capacitors of 1 to 10F. The devices can deliver superior performance even under low dropout c...

floor Price/Ceiling Price

Part Number:
AS1356
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

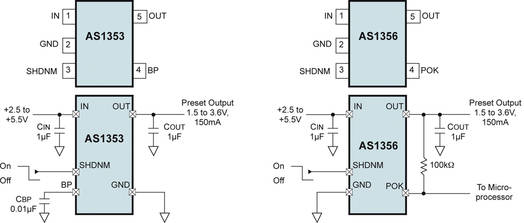

  Connection Diagram


Description

The AS1353/AS1356 are high-performance, fixed-voltage linear LDOs designed for use with capacitors of 1 to 10F. The devices can deliver superior performance even under low dropout conditions when the power transistor operates in linear mode.

The integrated P-channel MOSFET output allows AS1356 to maintain a low supply-current at loads of up to150mA. A shutdown mode includes logic-controlled circuitry which reduces shutdown current to less than 1A (max).

Integrated over-temperature and over-current protection circuitry switches AS1356 off in case of thermal overload or output short-circuit conditions.

The AS1353/AS1356 are optimized for low equivalent series resistance (ESR) output capacitors. Additionally, all devices contain reversed battery protection which disconnects the internal circuitry and parasitic diodes if the battery is connected incorrectly.

The AS1356 also features power-OK circuitry which can be used to monitor output regulation.

All devices also feature an integrated error amplifier and built-in 1.25V reference, and output current of AS1356 is limited (380mA typ) via the on-chip current limiting circuitry.

Multiple output voltages of AS1356 are available as standard products: 3.6, 3.3, 3.0, 2.7, 2.5, or 1.5V. All devices are available in a 5-pin SOT23 package.
