AS1333

PinoutDescriptionThe AS1333 is a step-down DC-DC converter designed to power portable applications from a single Li-Ion battery. The device also achieves high-performance in mobile phones and other applications requiring low dropout voltage. The AS1333 steps down an input voltage of 3.25V to 5.5V...

product image

AS1333 Picture
See larger image
SeekIC No. : 004288137 Detail

AS1333: PinoutDescriptionThe AS1333 is a step-down DC-DC converter designed to power portable applications from a single Li-Ion battery. The device also achieves high-performance in mobile phones and other ...

AS1333 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AS1333
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

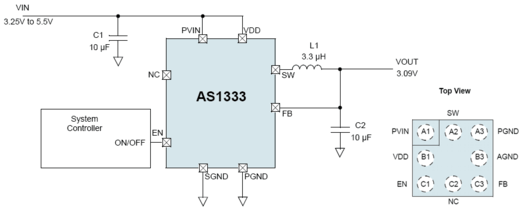

Connection Diagram


Description

The AS1333 is a step-down DC-DC converter designed to power portable applications from a single Li-Ion battery. The device also achieves high-performance in mobile phones and other applications requiring low dropout voltage.

The AS1333 steps down an input voltage of 3.25V to 5.5V to a fixed output voltage of 3.09V.

Fixed-frequency PWM operation minimizes RF interference. Shutdown function turns AS1333 off and reduces battery consumption to 0.01A (typ.).

The AS1333 is available in a 8-pin lead free micro SMD package. A high switching frequency (2 MHz) allows use of tiny surface-mount components. Only three small external surface-mount components, an inductor and two ceramic capacitors are required.
