AS1153

IC LVDS DUAL RECEIVER 8-SOIC

product image

AS1153 Picture
SeekIC No. : 003522490 Detail

AS1153: IC LVDS DUAL RECEIVER 8-SOIC

floor Price/Ceiling Price

US $ .67~1.57 / Piece | Get Latest Price
Part Number:
AS1153
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~2500
  • 2500~5000
  • Unit Price
  • $1.57
  • $1.26
  • $1.14
  • $1.01
  • $.88
  • $.73
  • $.68
  • $.67
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Logic Family : STMPE801 Series: -
Manufacturer: ams Type: Receiver
Number of Drivers/Receivers: 0/2 Protocol: LVDS
Voltage - Supply: 3 V ~ 3.6 V Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width) Supplier Device Package: 8-SOIC

Description

Series: -
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Packaging: Tube
Type: Receiver
Number of Drivers/Receivers: 0/2
Voltage - Supply: 3 V ~ 3.6 V
Protocol: LVDS
Manufacturer: ams


Pinout

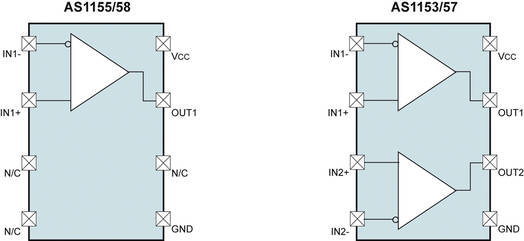

  Connection Diagram


Description

The AS1153/55/57/58 are Single/Dual flow-through LVDS (low-voltage differential signaling) receivers which accept LVDS differential inputs and convert them to LVCMOS outputs. The receivers are perfect for lowpower low-noise applications requiring high signaling rates and reduced EMI emissions.

AS1153 are guaranteed to receive data at speeds up to 260Mbps (130MHz) over controlled impedance media of approximately 100. Supported transmission media are PCB traces, backplanes, and cables.

The AS1155/58 are single LVDS receivers, and the AS1153/57 are dual LVDS receivers.

The AS1157/58 features integrated parallel termination resistors (nominally 107), which eliminate the requirement for discrete termination resistors, and reduce stub lengths. The AS1153/55 uses high impedance inputs and requires an external termination resistor when used in a point-to-point connection.

The integrated Failsafe feature of AS1153 sets the output high if the inputs are open, undriven and terminated, or undriven and shorted.

All inputs conform to the ANSI TIA/EIA- 644 LVDS standards. Flow-through pinout simplifies PC board layout and reduces crosstalk by separating the LVDS inputs and LVCMOS outputs.

AS1153 are available in an 8-pin SOIC package.
