AS1152

Series: -
Mounting Type: Surface Mount
Package / Case: 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 16-TSSOP
Type: Driver
Number of Drivers/Receivers: 4/0
Packaging: Tube
Voltage - Supply: 3 V ~ 3.6 V
Protocol: LVDS
Manufacturer: ams


Pinout




Description

The AS1152 is a Quad Flow-Through LVDS (Low-Voltage Differential Signaling) Line Driver which accepts and converts LVTTL/LVCMOS input levels into LVDS output signals. The device is perfect for low-power low-noise applications requiring high signaling rates and reduced EMI emissions.

AS1152 is guaranteed to transmit data at speeds up to 500Mbps (250MHz) over controlled impedance media of approximately 100. Supported transmission media are PCB traces, backplanes, and cables.

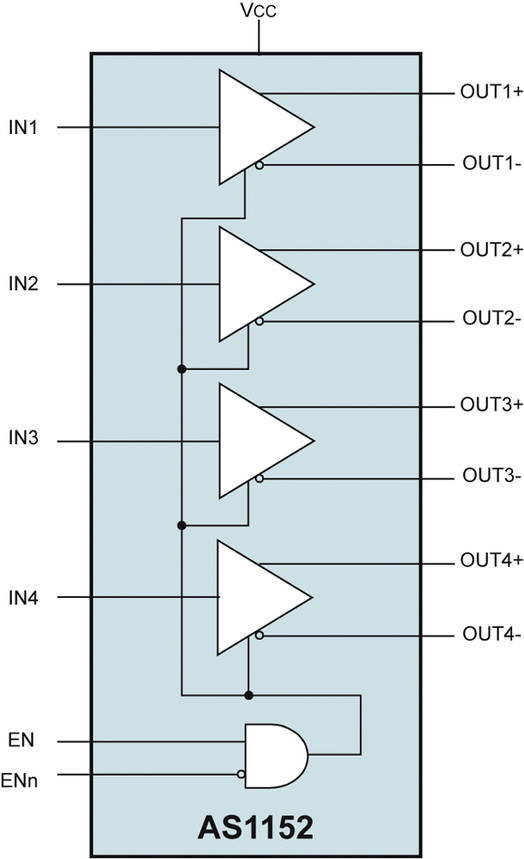

The AS1152 is capable of setting all four outputs to a high-impedance state through two Enable Inputs (EN and ENn internally pulled down to GND), dropping the device to an ultra-low-power state of 16mW (typical) during high impedance. The Enable Inputs are common to all four drivers.

Outputs of AS1152 conform to the ANSI TIA/EIA-644 LVDS standards. Flow-through pinout simplifies PC board layout and reduces crosstalk by separating the LVTTL/LVCMOS inputs and LVDS outputs.

The AS1152 operates from a single +3.3V supply and is specified for operation from -40 to +85°C.
