Features: • Low Cost Integrated Amplifier with Step Attenuator• Attenuation Range: 0-58 dB, adjustable in 1 dB increments via a 3 wire serial control• Meets DOCSIS distortion requirements at +60 dBmV output signal level• Low distortion and low noise• Frequency range: ...
ARA2004: Features: • Low Cost Integrated Amplifier with Step Attenuator• Attenuation Range: 0-58 dB, adjustable in 1 dB increments via a 3 wire serial control• Meets DOCSIS distortion requi...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe ARA2000S23 is a GaAs IC designed to provide the reverse path amplification and outp...
PARAMETER |
MIN |
MAX |
UNIT |
Analog Supply (pins 2, 4, 9, 21, 24) |
0 |
9 |
VDC |
Digital Supply: VCMOS (pin 11) |
0 |
6 |
VDC |
Amplifier Controls Vg1, Vg2 (pins 6, 23) |
-5 |
2 |
V |
RF Power at Inputs (pins 5, 8) |
- |
+60 |
dBmV |
Digital Interface (pins 12, 13, 14, 15, 16) |
-0.5 |
VCMOS+0.5 |
V |
Storage Temperature |
-0.5 |
+200 |
|
Soldering Temperature |
- |
260 |
|
Soldering Time |
- |
5 |
Sec |
Attenuator Step Size (dB) Typ | 1 |
Attenuation Range (dB) Typ | 60 |
2nd Harmonic Distortion Level* (dBc) Max | -53 |
3rd Harmonic Distortion Level* (dBc) Max | -53 |
Gain (dB) Typ | 29.3 |
Noise Figure (dB) Typ | 3.0 |
Noise Figure (dB) Max | 4.0 |
Notes | * specified at +60 dBmV output |

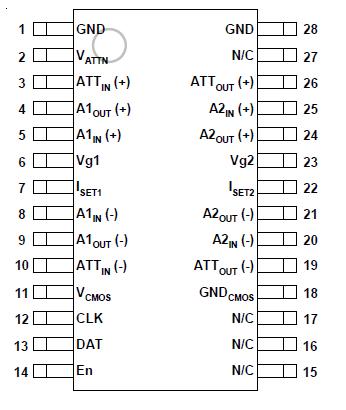

The ARA2004 is designed to provide the reverse path amplification and output level control functions in a CATV Set-Top Box or Cable Modem. ARA2004 incorporates a digitally controlled precision step attenuator that is preceded by an ultra low noise amplifier stage, and followed by an ultra-linear output driver amplifier. ARA2004 uses a balanced circuit design that exceeds the MCNS/DOCSIS requirement for harmonicperformance at a +60 dBmV output level while only requiring a single polarity +5 V supply. Both the input and output are matched to 75 ohms with an appropriate transformer. The precision attenuator provides up to 58 dB of attenuation in 1 dB increments via a three-wire serial interface. With external passive components, this device meets IEC 1000-4-12 and ANSI/IEEE C62.41-1991 100KHz ringwave tests, as well as IEC1000-4-5 1.2/50 S surge tests. The ARA2004 is offered in a 28-pin SSOP package featuring a heat slug on the bottom of the package.
