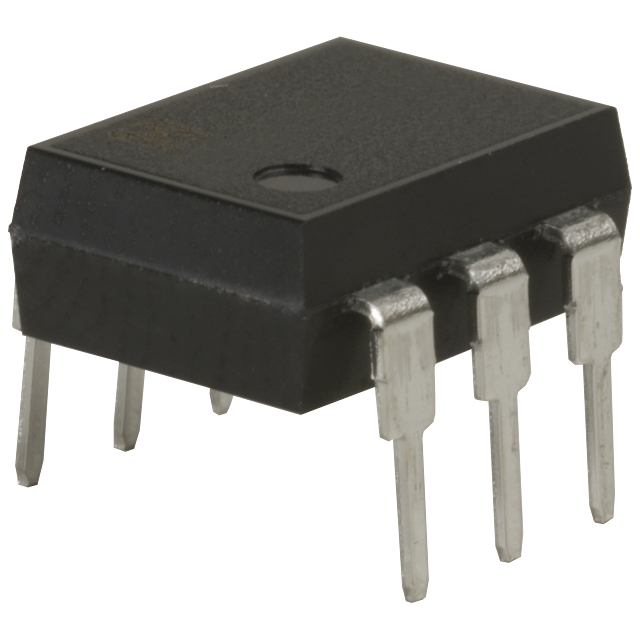

AQV214E

Product Type : PCB Mount
Contact Form : 1 Form A (SPST-NO)
Output Device : MOSFET
Mounting Style : Through Hole
Package / Case : DIP-6
Control Voltage Range : 1.5 V to 5 V
Load Current Rating : 120 mA
Load Voltage Rating : 400 V


Description

The AQV214E is one member of the photoMOS relays that can be used in data communication equipment, computer, high-speed inspection machines and telephone equipment. Features of the AQV214E are:(1)control with low-level input signals;(2)controls various types of loads such as relays, motors, lamps and solenoids;(3)controls low-level analog signals;(4)optical coupling for extremely high isolation;(5)eliminates the need for a counter electromotive force protection diode in the drive circuits on the input side;(6)stable on resistance;(7)low-level off state leakage current;(8)eliminates the need for a power supply to drive the power MOSFET;(9)low thermal electromotive force (Approx. 1 mV).

The absolute maximum ratings of the AQV214E can be summarized as:(1)LED forward current:50 mA;(2)LED reverse voltage:3 V;(3)peak forward current:1 A;(4)power dissipation:75 mW;(5)load voltage (peak AC):400 V;(6)peak load current:0.3 A;(7)power dissipation:500 mW;(8)total power dissipation:550 mW;(9)I/O isolation voltage:1,500 V AC;(10)operating temperature:-40 °C to +85°C. If you want to know more information such as the electrical characteristics about the AQV214E, please download the datasheet in www.seekic.com or www.chinaicmart.com.

Parameters:

Technical/Catalog Information	AQV214E
Vendor	Panasonic Electric Works
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	6-DIP
Circuit	SPST-NO (1 Form A)
Load Current	120mA
Voltage - Input	1.25VDC
Voltage - Load	0 ~ 400 V
Output Type	AC, DC
On-State Resistance	50 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AQV214E AQV214E 255 1153 5 ND 25511535ND 255-1153-5
