AQ297

Features: • +/-3 degrees Celsius accuracy• Adjustable temperature trip point• Open-drain output capable of 50mA• Internally programmed thermal hysteresis• Low input voltage and current• Excellent power supply noise rejection• Offered in very small SOT23-5 ...

product image

AQ297 Picture
See larger image
SeekIC No. : 004287735 Detail

AQ297: Features: • +/-3 degrees Celsius accuracy• Adjustable temperature trip point• Open-drain output capable of 50mA• Internally programmed thermal hysteresis• Low input vol...

AQ297 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AQ297
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• +/-3 degrees Celsius accuracy
• Adjustable temperature trip point
• Open-drain output capable of 50mA
• Internally programmed thermal hysteresis
• Low input voltage and current
• Excellent power supply noise rejection
• Offered in very small SOT23-5 package.
• RoHS Compliant


Application

• Battery Chargers
• Electronic System protection
• Fan Control
• Microprocessor Thermal Management
• HVAC Systems


Pinout

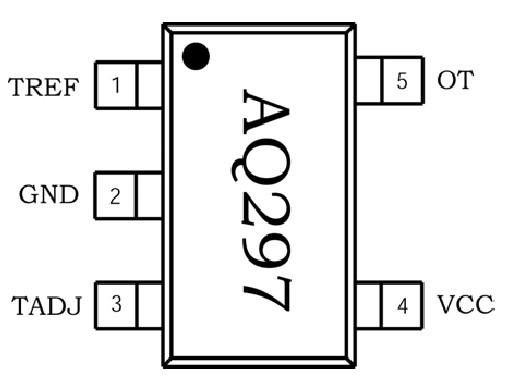

Connection Diagram


Specifications

Parameter
Value
Units
VCC Voltage
VOT Voltage
IOT Current
ITREF Current
ITADJ Current
Operating Junction Temperature
Lead Temperature (soldering 10 seconds)
Storage Temperature Range
18
18
80
10
10
155
260
-65 to +150
V
V
mA
mA
mA
ºC
ºC
ºC



Description

The device AQ297 is an adjustable accurate lowpower solid-state thermostat. The temperature trip point can be set with one external resistor from 50ºC to 150ºC with an accuracy of 3 degrees. The thermal hysteresis is internally programmed to guarantee stability at the transition point.

The device AQ297 is used to protect systems from overheating above the normal rating of components like capacitors, batteries, or any other temperature sensitive component. The device AQ297 is also used in battery management systems to stop the battery charge when the battery temperature is outside of the safe temperature range.

The output OT AQ297 is an open drain output that can sink up to 50mA when the threshold temperature is reached. The minimum voltage of operation is 2.2 V.
