APU0063

Features: • Power supply voltage ; +5V ± 10% +3V ± 10%• Supply voltage range for display : 10V• Negative display voltage :0 VEE VDD-10V• CMOS Process• InterfaceApplication• Dot matrix LCD driver with 80-channel output.• Input / Output signal• Outp...

product image

APU0063 Picture
See larger image
SeekIC No. : 004287614 Detail

APU0063: Features: • Power supply voltage ; +5V ± 10% +3V ± 10%• Supply voltage range for display : 10V• Negative display voltage :0 VEE VDD-10V• CMOS Process• InterfaceAppli...

APU0063 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APU0063
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply voltage ; +5V ± 10%
                                        +3V ± 10%
• Supply voltage range for display : 10V
• Negative display voltage :0 VEE VDD-10V
• CMOS Process
• Interface


Application

• Dot matrix LCD driver with 80-channel output.
• Input / Output signal
• Output ; 40 × 2 channel waveform for LCD driving
• Input ; - Serial display data and control pulse from controller LSI .


Pinout

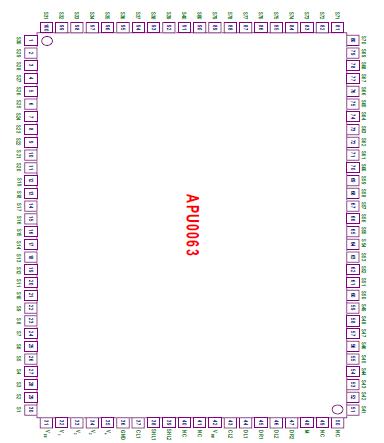

Connection Diagram


Description

The APU0063 is a LCD driver LSI that is fabricated by low power CMOS technology. Basically this LSI consists of 40 × 2bit bi-directional shift register, 40 × 2bit data latch and 40 × 2bit driver.
