APTGF30X60P2

Features: · Non Punch Through (NPT) Fast IGBT®- Low voltage drop- Low tail current- Switching frequency up to 50 kHz- Soft recovery parallel diodes- Low diode VF- Low leakage current- Avalanche energy rated- RBSOA and SCSOA rated· Kelvin emitter for easy drive· Very low stray inductance· High ...

product image

APTGF30X60P2 Picture
See larger image
SeekIC No. : 004287586 Detail

APTGF30X60P2: Features: · Non Punch Through (NPT) Fast IGBT®- Low voltage drop- Low tail current- Switching frequency up to 50 kHz- Soft recovery parallel diodes- Low diode VF- Low leakage current- Avalanche ...

APTGF30X60P2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APTGF30X60P2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Non Punch Through (NPT) Fast IGBT®
- Low voltage drop
- Low tail current
- Switching frequency up to 50 kHz
- Soft recovery parallel diodes
- Low diode VF
- Low leakage current
- Avalanche energy rated
- RBSOA and SCSOA rated
· Kelvin emitter for easy drive
· Very low stray inductance
· High level of integration


Application

· AC Motor control


Pinout

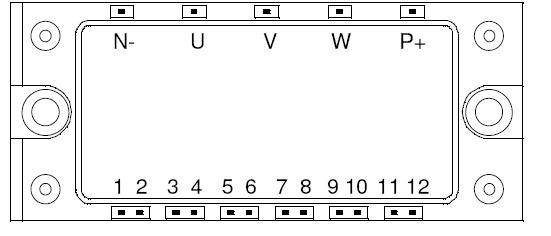

Connection Diagram


Specifications

Symbol Parameter Max ratings Unit
VCES Collector - Emitter Breakdown Voltage 600 V
IC Continuous Collector Current TC = 25°C 40 A
TC = 80°C 30
ICM Pulsed Collector Current TC = 25°C 75 A
VGE Gate Emitter Voltage ±20 V
PD Maximum Power Dissipation TC = 25°C 138 W
SCSOA Short Circuit Safe Operating Area Tj = 125°C 135A@360V
