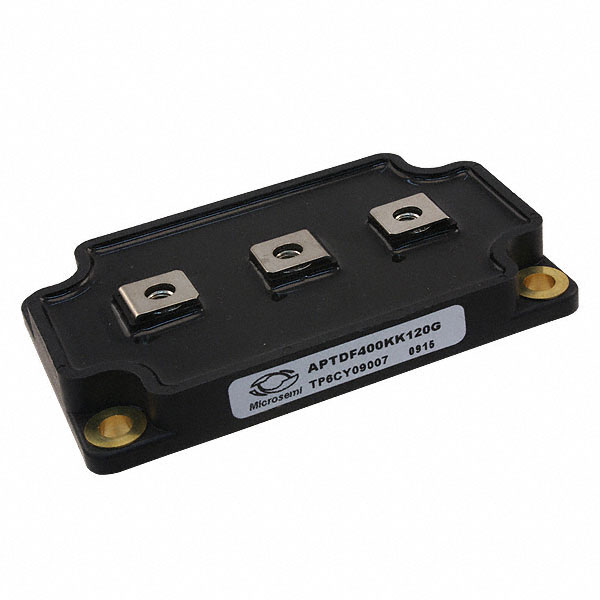

APTDF400KK120G

Series: -
Diode Type: Standard
Speed: Fast Recovery = 200mA (Io)
Mounting Type: Chassis Mount
Manufacturer: Microsemi Power Products Group
Voltage - DC Reverse (Vr) (Max): 1200V (1.2kV)
Diode Configuration: 1 Pair Common Cathode
Packaging: Bulk
Package / Case: LP4
Current - Reverse Leakage @ Vr: 250µA @ 1200V
Reverse Recovery Time (trr): 385ns
Supplier Device Package: SP6
Voltage - Forward (Vf) (Max) @ If: 3V @ 400A
Current - Average Rectified (Io) (per Diode): 470A


Features:

• Ultra fast recovery times
• Soft recovery characteristics
• High blocking voltage
• High current
• Low leakage current
• Very low stray inductance
- Symmetrical design
- M5 power connectors
• High level of integration


Application

• Uninterruptible Power Supply (UPS)
• Induction heating
• Welding equipment
• High speed rectifiers


Specifications

Symbol	Parameter			Max ratings	Unit
VR	Maximum DC reverse Voltage			1200	V
VRRM	Maximum Peak Repetitive Reverse Voltage				V
IF(AV)	Maximum Average Forward Current	Duty cycle = 50%	Tc = 25°C	470	A
			Tc = 70°C	400
IF(RMS)	RMS Forward Current	Duty cycle = 50%	TC = 45°C	500	A
IFSM	Non-Repetitive Forward Surge Current		Tj = 45°C	3000	A

Parameters:

Technical/Catalog Information	APTDF400KK120G
Vendor	Microsemi-PPG
Category	Discrete Semiconductor Products
Diode Type	Standard
Diode Configuration	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	1200V (1.2kV)
Current - Average Rectified (Io) (per Diode)	470A
Voltage - Forward (Vf) (Max) @ If	3V @ 400A
Current - Reverse Leakage @ Vr	250A @ 1200V
Reverse Recovery Time (trr)	385ns
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Chassis Mount
Package / Case	SP6
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	APTDF400KK120G APTDF400KK120G
