Series: -
Diode Type: Standard
Speed: Fast Recovery = 200mA (Io)
Diode Configuration: 2 Independent
Mounting Type: Chassis Mount

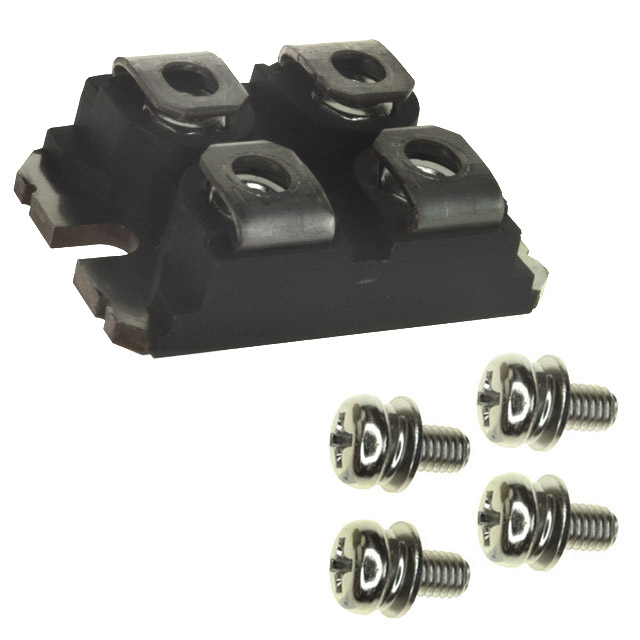

Package / Case: SOT-227-4, miniBLOC
Packaging: Tube
Manufacturer: Microsemi Power Products Group
Supplier Device Package: ISOTOP?
Voltage - DC Reverse (Vr) (Max): 1200V (1.2kV)
Voltage - Forward (Vf) (Max) @ If: 2.5V @ 60A
Current - Reverse Leakage @ Vr: 250µA @ 1200V
Current - Average Rectified (Io) (per Diode): 53A
Reverse Recovery Time (trr): 400ns
Features: • Ultrafast Recovery Times
• Soft Recovery Characteristics
• Popular SOT-227 Package
• Low Forward Voltage
• High Blocking Voltage
• Low Leakage Current Application• Anti-Parallel Diode-Switchmode Power Supply-Inverters
• Free Wheeling Diode-Motor Controllers-Converters
• Snubber Diode
• Uninterruptible Power Supply (UPS)
• Induction Heating
• High Speed Rectifiers Specifications
| Symbol |
Characteristic / Test Conditions |
APT2X61D120J |
UNIT |
| VR |
Maximum D.C. Reverse Voltage |
1200 |
Volts |
| VRRM |
Maximum Peak Repetitive Reverse Voltage |
| VRWM |
Maximum Working Peak Reverse Voltage |
| IF(AV) |
Maximum Average Forward Current (TC = 60°C, Duty Cycle = 0.5) |
60 |
Amps |
| IF(RMS) |
RMS Forward Current(Square wave, 50% duty) |
100 |
| IFSM |
Non-Repetitive Forward Surge Current (TJ = 45°C, 8.3ms) |
540 |
| TJ,TSTG |
Operating and StorageTemperature Range |
-55 to 150 |
°C |
| TL |
Lead Temperature: 0.063" from Case for 10 Sec |
300 |
Parameters: | Technical/Catalog Information | APT2X61D120J |
| Vendor | Microsemi-PPG |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Diode Configuration | 2 Independent |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) |
| Current - Average Rectified (Io) (per Diode) | 53A |
| Voltage - Forward (Vf) (Max) @ If | 2.5V @ 60A |
| Current - Reverse Leakage @ Vr | 250A @ 1200V |
| Reverse Recovery Time (trr) | 400ns |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227 |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | APT2X61D120J
APT2X61D120J
APT2X61D120JMI ND
APT2X61D120JMIND
APT2X61D120JMI
|
APT2X61D120J Data Sheet
