APM9932C

Features: N-Channel 20V/15A , RDS(ON)= 12m(typ.) @ VGS=10V RDS(ON) =17m(typ.) @ VGS =4.5V P-Channel -20V/-6A ,RDS(ON)= 30m(typ.) @ VGS=-4.5V RDS(ON) =45m(typ.) @ VGS =-2.5V Super High Dense Cell Design for Extremely Low R DS(ON) Reliable and Rugged SOP-8 PackageApplicationPower Management in No...

product image

APM9932C Picture
See larger image
SeekIC No. : 004286958 Detail

APM9932C: Features: N-Channel 20V/15A , RDS(ON)= 12m(typ.) @ VGS=10V RDS(ON) =17m(typ.) @ VGS =4.5V P-Channel -20V/-6A ,RDS(ON)= 30m(typ.) @ VGS=-4.5V RDS(ON) =45m(typ.) @ VGS =-2.5V Super High Dense Cell ...

APM9932C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APM9932C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

   N-Channel

        20V/15A ,      RDS(ON)=  12m(typ.) @ VGS=10V
                            RDS(ON) =17m(typ.) @ VGS =4.5V
    P-Channel

        -20V/-6A ,     RDS(ON)=  30m(typ.) @ VGS=-4.5V
                             RDS(ON) =45m(typ.) @ VGS =-2.5V
     Super High Dense Cell Design for Extremely
        Low R DS(ON)
     Reliable and Rugged
     SOP-8 Package




Application

Power Management in Notebook Computer , Portable Equipment and Battery Powered  Systems.


Pinout

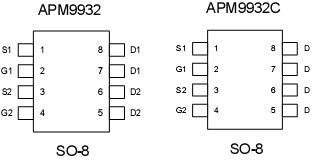

Connection Diagram


Specifications

Symbol Parameter N-Channel P-Channel Unit
VDSS Drain-Source Voltage 20 -20 V
VGSS Gate-Source Voltage ±16 ±12

ID* 		Maximum Drain Current Continuous 15 -6 A
IDM Maximum Drain Current Pulsed 30 -10
PD Maximum Power Dissipation TA=25°C 2.5 2.5 W
TA=100°C 1.0 1.0
TJ Maximum Junction Temperature 150 °C
TSTG Storage Temperature Range -55 to 150 °C
RjA Thermal Resistance Junction to Ambient 50 °C /W
