APM9928

Features: N-Channel 20V/5A , RDS(ON)= 35m(typ.) @ VGS=4.5V RDS(ON) =50m(typ.) @ VGS =3.0V P-Channel -20V/-3.2A ,RDS(ON)= 80m(typ.) @ VGS=-4.5V RDS(ON) =120m(typ.) @ VGS =-3.0V Super High Dense Cell Design for Extremely Low R DS(ON) Reliable and Rugged SOP-8 PackageApplicationPower Management in...

product image

APM9928 Picture
See larger image
SeekIC No. : 004286956 Detail

APM9928: Features: N-Channel 20V/5A , RDS(ON)= 35m(typ.) @ VGS=4.5V RDS(ON) =50m(typ.) @ VGS =3.0V P-Channel -20V/-3.2A ,RDS(ON)= 80m(typ.) @ VGS=-4.5V RDS(ON) =120m(typ.) @ VGS =-3.0V Super High Dense Ce...

APM9928 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APM9928
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

   N-Channel

        20V/5A ,      RDS(ON)=  35m(typ.) @ VGS=4.5V
                          RDS(ON) =50m(typ.) @ VGS =3.0V
    P-Channel

        -20V/-3.2A ,     RDS(ON)=  80m(typ.) @ VGS=-4.5V
                             RDS(ON) =120m(typ.) @ VGS =-3.0V
     Super High Dense Cell Design for Extremely
        Low R DS(ON)
     Reliable and Rugged
     SOP-8 Package




Application

Power Management in Notebook Computer , Portable Equipment and Battery Powered  Systems.


Pinout

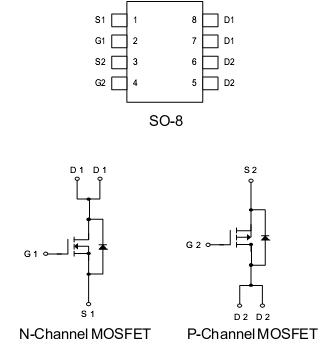

Connection Diagram


Specifications

Symbol Parameter N-Channel P-Channel Unit
VDSS Drain-Source Voltage 20 -20 V
VGSS Gate-Source Voltage ±16 ±16

ID* 		Maximum Drain Current Continuous 5 -3.2 A
IDM Maximum Drain Current Pulsed 10 -10
PD Maximum Power Dissipation TA=25°C 2.5 2.5 W
TA=100°C 1.0 1.0
TJ Maximum Junction Temperature 150 °C
TSTG Storage Temperature Range -55 to 150 °C
RjA Thermal Resistance Junction to Ambient 50 °C /W
