Features:

• 30V/15A, RDS(ON)=48m(typ.) @ VGS=10V
RDS(ON)=75m(typ.) @ VGS=4.5V
• Super High Dense Cell Design
• High Power and Current Handling Capability
• TO-252 and SOT-223 Package


Application

• Switching Regulators
• Switching Converters


Specifications

Symbol Parameter Rating Unit
VDSS Drain-Source Voltage 30 V
VGSS Gate-Source Voltage ±20
ID Maximum Drain Current Continuous 15 A
IDM Maximum Drain Current Pulsed 30
IS Diode Continuous Forward Current 8 A
ISM Diode Maximum Pulse Current 32 A
PD Maximum Power Dissipation TA=25°C TO-252 62.5 W
SOT-223 3
TA=100°C TO-252 25 W
SOT-223 1.2
TJ Maximum Junction Temperature 150 °C
TSTG Storage Temperature Range -55 to 150 °C



Description

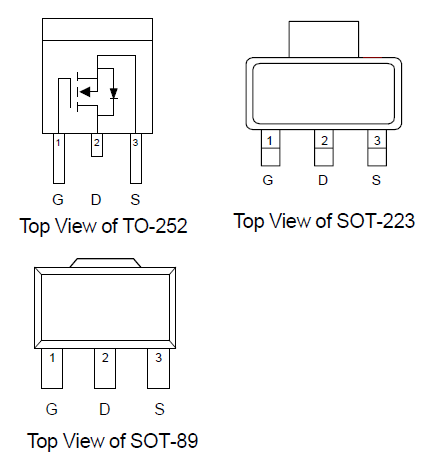

Connection Diagram
